Qidiruv natijalari: Allison C-4. RAVENOL moyini tanlash

Agrar Synto 15W-40

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

batafsil

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Parametr	O‘lchov birligi	Qiymat	Sinov

UTTO Synthetic

RAVENOL UTTO Synthetic is a combined transmission and hydraulic oil on the basis of solvent refined base oils. It is a special developed universal oil which can be used in combined hydraulic and transmission systems of modern tractors. High quality base oils and exclusive additives guarantee a trouble-free operation of all aggregates at any season.

Ishlab chiqaruvchi tomonidan ma’qullangan:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, FNHA 2-C-201.00, Ford ESN-M2C 86-B, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S

Online xarid qilish

batafsil

SAE: NONE

API: GL-4

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 լ

Artikel:
1310712-005

Hajm:
10 լ

Artikel:
1310712-010

Hajm:
20 լ

Artikel:
1310712-020

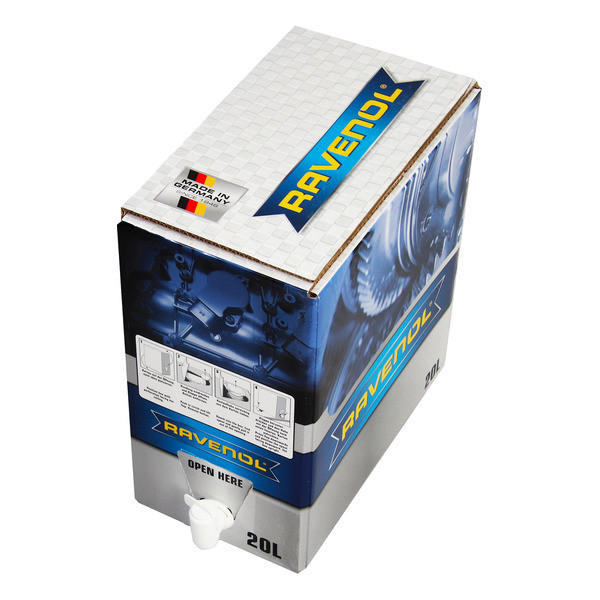

Hajm:
20 լ, ecobox

Artikel:
1310712-B20

Hajm:
60 լ

Artikel:
1310712-060

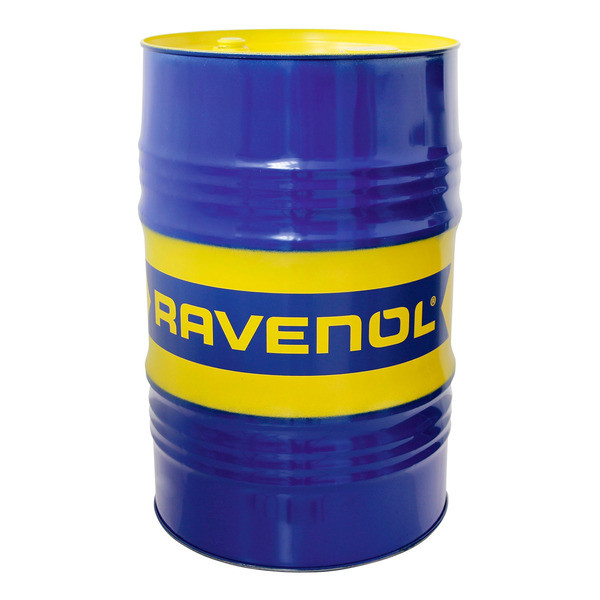

Hajm:
208 լ

Artikel:
1310712-208

Hajm:
1 000 լ

Artikel:
1310712-700

RAVENOL UTTO Synthetic is a combined transmission and hydraulic oil on the basis of solvent refined base oils. It is a special developed universal oil which can be used in combined hydraulic and transmission systems of modern tractors. High quality base oils and exclusive additives guarantee a trouble-free operation of all aggregates at any season.

Application Note

RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.

Characteristics

a very high stable viscosity index
a very low pour point
a high oxidation stability
a very high pressure absorption capacity
protection against corrosion and foam formation as far as possible
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
high shear stability

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		NONE		NONE
Brand		RAVENOL		RAVENOL
Turi		Synthetic		Synthetic
API		GL-4		GL-4
Ishlab chiqaruvchi tomonidan ma’qullangan		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S
Spetsifikatsiyalarga mos keladi		DIN 51524-3		DIN 51524-3
Zichlik 20°С da	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Rang		Yellow	տեսողական	Yellow տեսողական
Viskozite 100°С da	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	71	DIN 51562-1	71 mm²/s DIN 51562-1
Viskozite indeksi VI		175	DIN ISO 2909	175 DIN ISO 2909
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F

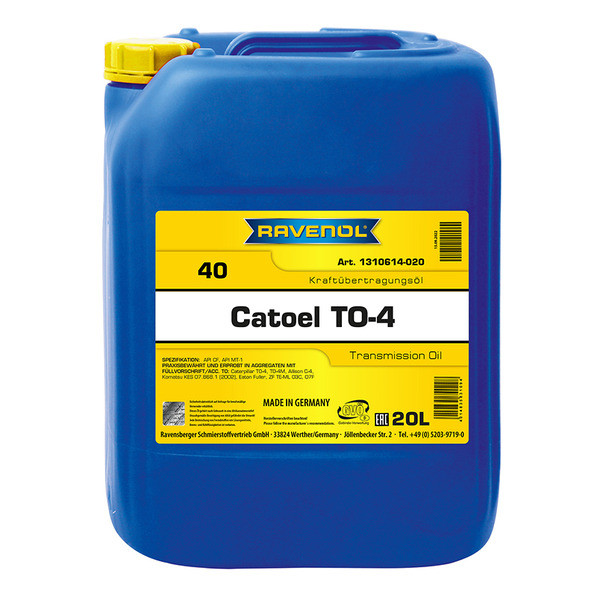

RAVENOL Catoel TO-4 40

RAVENOL CATOEL TO-4 SAE 40 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Talablarga muvofiqligi:
Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Online xarid qilish

batafsil

SAE: 40W

API: CF, MT-1

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ

Artikel:
1310614-020

Hajm:
20 լ, ecobox

Artikel:
1310614-B20

Hajm:
208 լ

Artikel:
1310614-208

Hajm:
1 000 լ

Artikel:
1310614-700

RAVENOL CATOEL TO-4 SAE 40 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Application Note

RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection
High oxidation stability
Excellent viscosity-temperature behavior
Optimization of friction coefficient behavior
Guarantees maximum life of the units

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		40W		40W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Talablarga mos keladi		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Mos keladi		Eaton Fuller		Eaton Fuller
Zichlik 20°С da	g/cm³	889	EN ISO 12185	889 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	13.6	DIN 51562-1	13.6 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	134	DIN 51562-1	134 mm²/s DIN 51562-1
Viskozite indeksi VI		96	DIN ISO 2909	96 DIN ISO 2909
Qotish harorati	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	270	DIN EN ISO 2592	270 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Catoel TO-4 60

RAVENOL CATOEL TO-4 SAE 60 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Talablarga muvofiqligi:
Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

Online xarid qilish

batafsil

SAE: 60W

API: CF, MT-1

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
208 լ

Artikel:
1310616-208

Hajm:
1 000 լ

Artikel:
1310616-700

Hajm:
20 լ

Artikel:
1310616-020

RAVENOL CATOEL TO-4 SAE 60 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.

Application Note

RAVENOL CATOEL TO-4 SAE 60 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.

Characteristics

Highest wear protection.
High oxidation stability.
Excellent viscosity-temperature behavior.
Optimization of friction coefficient behavior.
Guarantees maximum life of the units.

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		60W		60W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Talablarga mos keladi		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F
Mos keladi		Eaton Fuller		Eaton Fuller
Zichlik 20°С da	g/cm³	903	EN ISO 12185	903 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	23.5	DIN 51562-1	23.5 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	312.6	DIN 51562-1	312.6 mm²/s DIN 51562-1
Viskozite indeksi VI		95	DIN ISO 2909	95 DIN ISO 2909
Qotish harorati	°C	-12	DIN ISO 3016	-12 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	272	DIN EN ISO 2592	272 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar TO-4, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

STOU 10W-40

RAVENOL STOU SAE 10W-40 is an up-to-date multifunctional lubricating oil for agricultural machinery, excavators and construction machinery and is formulated with top-grade solvent refined base oils and additives.

Talablarga muvofiqligi:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Online xarid qilish

batafsil

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 լ

Artikel:
1310111-005

Hajm:
10 լ

Artikel:
1310111-010

Hajm:
20 լ

Artikel:
1310111-020

Kod:
4014835739826

Hajm:
20 լ, ecobox

Artikel:
1310111-B20

Hajm:
60 լ

Artikel:
1310111-060

Hajm:
1 000 լ

Artikel:
1310111-700

Hajm:
208 լ

Artikel:
1310111-208

RAVENOL STOU SAE 10W-40 is an up-to-date multifunctional lubricating oil for agricultural machinery, excavators and construction machinery and is formulated with top-grade solvent refined base oils and additives.

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Talablarga mos keladi		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Mos keladi		Atlas Copco Kompressor		Atlas Copco Kompressor
Zichlik 20°С da	g/cm³	864	EN ISO 12185	864 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viskozite indeksi VI		151	DIN ISO 2909	151 DIN ISO 2909
Qotish harorati	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Formel Diesel Super 10W-30

RAVENOL Formel Diesel Super 10W-30 motor moyi Germaniyada yuqori sifatli mineral bazaviy moy asosida ishlab chiqarilgan bo'lib, maxsus ishlab chiqilgan qo'shimchalar paketidan foydalanilgan.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

Online xarid qilish

batafsil

SAE: 10W-30

API: CF, CF-4

ACEA: B4, E2

Analoglar OEM:
Chrysler VU02101, Hyundai Motor 0520000C10, Hyundai Motor 0520000410, Hyundai Motor 0520000610, Hyundai Motor 520000610, Mitsubishi 2423610, Mitsubishi 2987401, Mitsubishi 2987610, Mitsubishi MZ102041, Mitsubishi MZ102682, Nissan KLBD010302, Nissan KLBD010302, Nissan KLBD010304, Toyota 0888083320, Toyota 0888083321, Toyota 0888301900, Toyota 0888301903, Toyota 0888301905, Toyota 0888301906

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1123205-001

Kod:
4014835726215

Hajm:
5 L

Artikel:
1123205-005

Kod:
4014835726253

Hajm:
10 L

Artikel:
1123205-010

Kod:
4014835726246

Hajm:
20 L

Artikel:
1123205-020

Kod:
4014835726222

Hajm:
20 L, ecobox

Artikel:
1123205-B20

Hajm:
60 L

Artikel:
1123205-060

Kod:
4014835726260

Hajm:
208 L

Artikel:
1123205-208

Kod:
4014835726284

Hajm:
1 000 L

Artikel:
1123205-700

RAVENOL Formel Diesel Super 10W-30 motor moyi Germaniyada yuqori sifatli mineral bazaviy moy asosida ishlab chiqarilgan bo'lib, maxsus ishlab chiqilgan qo'shimchalar paketidan foydalanilgan.

RAVENOL Formel Diesel Super 10W-30 motor moyi aynan yuk mashinalari, karer va qurilish texnikasining dizel dvigatellari uchun ishlab chiqilgan bo'lib, ushbu turdagi avtomobillar uchun eng yaxshi motor moylaridan biridir. RAVENOL Formel Diesel Super 10W-30 motor moyi eng qiyin sharoitlarda va eng yuqori yuklamalar bilan ishlaydigan dizel dvigatellari uchun mo'ljallangan.

Formel Diesel Super 10W-30 qo'llanilishi ta'minlaydi:

Katalizatorlar bilan maksimal moslik
Ajoyib tozalash va dispersiyon xususiyatlari
Yaxshi sovuq boshlanish
Oksidlanishga yuqori qarshilik
Ajoyib viskozite-issiqxona xususiyatlari
Zo'r ishqalanishdan himoya
Chiqindilarni kamaytirish
Yuqori ishonchlilik

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C
Viskozite		10W-30		10W-30
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, CF-4		CF, CF-4
ACEA		B4, E2		B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Zichlik 20°С da	g/cm³	859	EN ISO 12185	859 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	82.5	DIN 51562-1	82.5 mm²/s DIN 51562-1
Viskozite indeksi VI		147	DIN ISO 2909	147 DIN ISO 2909
Past haroratli viskozite (ССС) -25°C da	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Past haroratda nasoslanish viskozitesi (MRV) -30°C da	mPa*s	20.600	ASTM D4684	20.600 mPa*s ASTM D4684
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	8.9	ASTM D2896	8.9 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

Turbo plus SHPD 15W-40

RAVENOL Turbo Plus SHPD SAE 15W-40 – SHPD toifasiga mansub mineral motor moyi aralash avtopark uchun mo‘ljallangan. Dizel va benzin dvigatellari, shu jumladan turbokompressorli dvigatellar uchun ishlatilishi mumkin. Ishlab chiqaruvchi ko‘rsatmalariga muvofiq, uzaytirilgan moy almashtirish intervalini kafolatlaydi.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C

Online xarid qilish

batafsil

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1123115-001

Hajm:
4 L

Artikel:
1123115-004

Hajm:
5 L

Artikel:
1123115-005

Kod:
4014835726154

Hajm:
7 L

Artikel:
1123115-007

Hajm:
10 L

Artikel:
1123115-010

Kod:
4014835726147

Hajm:
20 L

Artikel:
1123115-020

Kod:
4014835726123

Hajm:
20 L, ecobox

Artikel:
1123115-B20

Kod:
4014835776821

Hajm:
60 L

Artikel:
1123115-060

Kod:
4014835726161

Hajm:
60 L, bosilgan barrel

Artikel:
1123115-D60

Kod:
4014835726130

Hajm:
208 L

Artikel:
1123115-208

Kod:
4014835726185

Hajm:
208 L, bosilgan barrel

Artikel:
1123115-D28

Kod:
4014835726109

Hajm:
1 000 L

Artikel:
1123115-700

RAVENOL Turbo Plus SHPD SAE 15W-40 – SHPD toifasiga mansub mineral motor moyi aralash avtopark uchun mo‘ljallangan. Dizel va benzin dvigatellari, shu jumladan turbokompressorli dvigatellar uchun ishlatilishi mumkin. Ishlab chiqaruvchi ko‘rsatmalariga muvofiq, uzaytirilgan moy almashtirish intervalini kafolatlaydi.

SAE 15W-40 yopishqoqlik sinfiga tegishli motor moyidan foydalanish talab etiladigan dizel dvigatellar uchun to‘liq mavsumiy motor moyi sifatida tavsiya etiladi.

Ishlab chiqaruvchi talablariga muvofiq, turbodizel dvigatellarida uzaytirilgan moy almashtirish intervali uchun mos keladi.

Turbo Plus SHPD SAE 15W-40 qo‘llanilishi quyidagi afzalliklarni ta’minlaydi:

Ajoyib tezkorlik, juda yuqori oksidlanish barqarorligi
Istisno darajadagi eskirishga chidamlilik
Ajoyib yopishqoqlik-harorat xususiyatlari
Chegaraviy moylash sharoitida ham yuqori mustahkamlik zaxirasi
Uzaytirilgan moy almashtirish intervali
Og‘ir ish sharoitlari uchun eng mos keladi

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Viskozite		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Ishlab chiqaruvchi tomonidan ma’qullangan		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Mos keladi		IVECO, Steyr Motor GAZ 560, YaMZ		IVECO, Steyr Motor GAZ 560, YaMZ
Zichlik 20°С da	g/cm³	870	EN ISO 12185	870 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	115.7	DIN 51562-1	115.7 mm²/s DIN 51562-1
Viskozite indeksi VI		134	DIN ISO 2909	134 DIN ISO 2909
Yuqori haroratli viskozite (HTHS) 150°С da	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	10.5	ASTM D2896	10.5 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

Formel Diesel Super 15W-40

RAVENOL Formel Diesel Super 15W-40 - yuqori sifatli mineral dizel dvigatellari uchun motor moyi bo‘lib, yengil va yuk avtomobillari uchun turbokompressorli va turbokompressorsiz variantlarga mos keladi. Kuchli yog‘ plyonkasi va siljishga chidamlilikni ta’minlaydi, a’lo darajadagi tozalash xususiyatlariga ega va uzoq muddatga eskirishga chidamli.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Renault RLD, Renault RLD-2, TEDOM 258-2

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

Online xarid qilish

batafsil

SAE: 15W-40

API: CF-4

ACEA: B4, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1123215-001

Hajm:
5 L

Artikel:
1123215-005

Kod:
4014835756953

Hajm:
10 L

Artikel:
1123215-010

Kod:
4014835756946

Hajm:
20 L

Artikel:
1123215-020

Kod:
4014835756922

Hajm:
20 L, ecobox

Artikel:
1123215-B20

Kod:
4014835777125

Hajm:
60 L

Artikel:
1123215-060

Kod:
4014835756960

Hajm:
60 L, bosilgan barrel

Artikel:
1123215-D60

Hajm:
208 L

Artikel:
1123215-208

Kod:
4014835756984

Hajm:
208 L, bosilgan barrel

Artikel:
1123215-D28

Hajm:
1 000 L

Artikel:
-

Kod:
4014835630987

Hajm:
1 000 L

Artikel:
1123215-700

RAVENOL Formel Diesel Super 15W-40 - yuqori sifatli mineral dizel dvigatellari uchun motor moyi bo‘lib, yengil va yuk avtomobillari uchun turbokompressorli va turbokompressorsiz variantlarga mos keladi. Kuchli yog‘ plyonkasi va siljishga chidamlilikni ta’minlaydi, a’lo darajadagi tozalash xususiyatlariga ega va uzoq muddatga eskirishga chidamli.

Aralash avtomobil parklarida to‘liq mavsumiy motor moyi sifatida qo‘llaniladi. Yuk avtomobillari dvigatellari uchun og‘ir yuklanish va avtomobil ishlab chiqaruvchisi talablariga muvofiq uzaytirilgan moy almashtirish intervalida tavsiya etiladi.

Formel Diesel Super SAE 15W-40 qo‘llanilishi quyidagilarni ta’minlaydi:

Siljishga nisbatan yaxshi chidamlilik
Yuqori oksidlanishga chidamlilik
A’lo darajadagi viskozite-harorat xususiyatlari
Katalizatorlarning tozaligini saqlash
A’lo darajadagi yuvish va dispersiyalash xususiyatlari
Yog‘ yetishmovchiligi sharoitida ham yuqori xavfsizlik
Sovuq ishga tushirishda a’lo darajadagi ishlash

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C
Viskozite		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF-4		CF-4
ACEA		B4, E2		B4, E2
Ishlab chiqaruvchi tomonidan ma’qullangan		Renault RLD, Renault RLD-2, TEDOM 258-2		Renault RLD, Renault RLD-2, TEDOM 258-2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Zichlik 20°С da	g/cm³	873	EN ISO 12185	873 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viskozite indeksi VI		137	DIN ISO 2909	137 DIN ISO 2909
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C

STOU 20W-40

RAVENOL STOU SAE 20W-40 is up-to-date multifunctional STOU (Super Tractor Oil Universal) lubricating oil for agricultural- and earthmoving equipment, formulated with top-grade solvent refined base oils. It is a special fluid which meets the recommendations of agricultural machinery manufacturers.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

Online xarid qilish

batafsil

SAE: 20W-40

API: CG-4, GL-4, SF

ACEA: E3

Analoglar OEM:
Yamalube ACCTRANSPLUS

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ

Artikel:
1310114-020

Kod:
4014835740129

Hajm:
20 լ, ecobox

Artikel:
1310114-B20

Hajm:
60 լ

Artikel:
1310114-060

Hajm:
208 լ

Artikel:
1310114-208

Kod:
4014835740181

Hajm:
1 000 լ

Artikel:
1310114-700

RAVENOL STOU SAE 20W-40 is up-to-date multifunctional STOU (Super Tractor Oil Universal) lubricating oil for agricultural- and earthmoving equipment, formulated with top-grade solvent refined base oils. It is a special fluid which meets the recommendations of agricultural machinery manufacturers.

RAVENOL STOU SAE 20W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 20W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 20W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		20W-40		20W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
Zichlik 20°С da	g/cm³	883	EN ISO 12185	883 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	13.1	DIN 51562-1	13.1 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	111.8	DIN 51562-1	111.8 mm²/s DIN 51562-1
Viskozite indeksi VI		112	DIN ISO 2909	112 DIN ISO 2909
Qotish harorati	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	246	DIN EN ISO 2592	246 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Past haroratli viskozite (CCS) -15°С da	mPa*s	6860	ASTM D5293	6860 mPa*s ASTM D5293
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B

STOU 15W-30

RAVENOL STOU SAE 15W-30 Ունիվերսալ հանքային տրակտորային յուղը, որը նախատեսված է գյուղատնտեսական տեխնիկայի, էքսկավատորների և շինարարական տեխնիկայի համար, մշակված է բարձրորակ, սոլվենտից մաքրված հանքային բազային յուղի հիման վրա: Այն հատուկ արտադրանք է, որը պահանջում է ընտրության մասնագիտական մոտեցում: Հետևեք արտադրողի առաջարկություններին հեղուկի ընտրության, դրա փոփոխության կարգի և հաճախականության վերաբերյալ:

Talablarga muvofiqligi:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

Online xarid qilish

batafsil

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ, ecobox

Artikel:
1310112-B20

Hajm:
60 լ

Artikel:
1310112-060

Kod:
4014835739963

Hajm:
60 լ, տպագիր տակառ

Artikel:
1310112-D60

Hajm:
208 լ

Artikel:
1310112-208

Hajm:
1 000 լ

Artikel:
1310112-700

Hajm:
20 լ

Artikel:
1310112-020

RAVENOL STOU SAE 15W-30 Ունիվերսալ հանքային տրակտորային յուղը, որը նախատեսված է գյուղատնտեսական տեխնիկայի, էքսկավատորների և շինարարական տեխնիկայի համար, մշակված է բարձրորակ, սոլվենտից մաքրված հանքային բազային յուղի հիման վրա: Այն հատուկ արտադրանք է, որը պահանջում է ընտրության մասնագիտական մոտեցում: Հետևեք արտադրողի առաջարկություններին հեղուկի ընտրության, դրա փոփոխության կարգի և հաճախականության վերաբերյալ:

Օգտագործվում է ժամանակակից տրակտորային սարքավորումների շարժիչների, փոխանցումատուփերի և հիդրավլիկ համակարգերի համար: Բարձրորակ բազային յուղը և հատուկ ընտրված հավելանյութերի փաթեթը երաշխավորում են սարքավորումների ամբողջ տարվա անխափան աշխատանքը

Օգտագործումը STOU SAE 15W-30 ապահովում է.

Գերազանց լվացող և ցրող հատկություններ
Համապարփակ պաշտպանություն մաշվածությունից, կոռոզիայից և փրփուրից
Բարձր օքսիդացման դիմադրություն
Գերազանց ծայրահեղ ճնշման հատկություններ
Կայուն բարձր մածուցիկության Ինդեքս

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		15W-30		15W-30
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CE, GL-4, SF		CE, GL-4, SF
ACEA		E1, E2		E1, E2
Talablarga mos keladi		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Mos keladi		Atlas Copco Kompressor		Atlas Copco Kompressor
Zichlik 20°С da	g/cm³	861	EN ISO 12185	861 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viskozite indeksi VI		159	DIN ISO 2909	159 DIN ISO 2909
Qotish harorati	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11.7	ASTM D2896	11.7 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-30

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

batafsil

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Analoglar OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Parametr	O‘lchov birligi	Qiymat	Sinov

STOU 15W-40

RAVENOL STOU SAE 15W-40 zamonaviy traktorlarning dvigatellari, uzatmalar va gidravlik tizimlarida foydalanish uchun mo‘ljallangan universal moydir. Yuqori sifatli eritma bilan tozalangan bazaviy moylar va maxsus sintetik asosli qo‘shimchalar barcha uzel va tizimlarning har qanday faslda muammosiz ishlashini ta’minlaydi.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 86-A, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

Online xarid qilish

batafsil

SAE: 15W-40

API: CE, CF-4, GL-4, SF

ACEA: E1

Analoglar OEM:
Volvo 1161908, Volvo 1161908

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 L

Artikel:
1310113-005

Hajm:
10 L

Artikel:
1310113-010

Kod:
W24001055

Hajm:
20 L

Artikel:
1310113-020

Kod:
4014835740020

Hajm:
20 L, ecobox

Artikel:
1310113-B20

Hajm:
60 L

Artikel:
1310113-060

Hajm:
208 L

Artikel:
1310113-208

Hajm:
1 000 L

Artikel:
1310113-700

RAVENOL STOU SAE 15W-40 zamonaviy traktorlarning dvigatellari, uzatmalar va gidravlik tizimlarida foydalanish uchun mo‘ljallangan universal moydir. Yuqori sifatli eritma bilan tozalangan bazaviy moylar va maxsus sintetik asosli qo‘shimchalar barcha uzel va tizimlarning har qanday faslda muammosiz ishlashini ta’minlaydi.

Qo‘llash bo‘yicha eslatma

RAVENOL STOU SAE 15W-40 zamonaviy traktorlarning dvigatellari, uzatmalar va gidravlik tizimlarida keng qo‘llaniladi.

RAVENOL STOU SAE 15W-40 benzinli dvigatellar va so‘rma hamda turbinali dizel dvigatellar uchun dvigatel moyi sifatida, shuningdek, uzatma moyi (shu jumladan ho‘l tormozlar) va gidravlik moy sifatida foydalanish uchun mos keladi.

Xususiyatlari

Kuchli dispersiya va tozalovchi xususiyatlar
Eskirish, korroziya va ko‘piklanishga qarshi yuqori faollik
Oksidlanishga nisbatan juda yuqori chidamlilik
Zo‘r bosimga bardoshlilik xususiyatlari
Yuqori va barqaror viskozite indeksi

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Ford M2C-86 A, John Deere J27, Massey Ferguson M1143, Massey Ferguson M1144, MB 227.1, NH 410B, NH 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Ford M2C-86 A, John Deere J27, Massey Ferguson M1143, Massey Ferguson M1144, MB 227.1, NH 410B, NH 420A, ZF TE-ML 06B, ZF TE-ML 07B
Viskozite		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CE, CF-4, GL-4, SF		CE, CF-4, GL-4, SF
ACEA		E1		E1
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
Spetsifikatsiyalarga mos keladi		CCMC D4, CCMC G2		CCMC D4, CCMC G2
Zichlik 20°С da	g/cm³	865	EN ISO 12185	865 g/cm³ EN ISO 12185
Rang		Jigarrang	ingl	Jigarrang ingl
Viskozite 100°С da	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	94.2	DIN 51562-1	94.2 mm²/s DIN 51562-1
Viskozite indeksi VI		141	DIN ISO 2909	141 DIN ISO 2909
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	12.8	ASTM D2896	12.8 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B

Turbo-C HD-C 15W-40

RAVENOL Turbo-C HD-C 15W-40 mineral motor moyi yengil benzin va dizel dvigatellari uchun, turboquvvatlagich va to‘g‘ridan-to‘g‘ri yoqilg‘i purkash tizimi bilan yoki ularsiz. Ishqalanish va eskirishni minimal darajada kamaytiradi.

Ishlab chiqaruvchi tomonidan ma’qullangan:
VW 501.01, VW 505.00

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C

Online xarid qilish

batafsil

SAE: 15W-40

API: CF, CF-4, SL

ACEA: A3, B4, E2

Analoglar OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1113103-001

Kod:
4014835724518

Hajm:
4 L

Artikel:
1113103-004

Hajm:
5 L

Artikel:
1113103-005

Kod:
4014835724556

Hajm:
10 L

Artikel:
1113103-010

Kod:
4014835724549

Hajm:
20 L

Artikel:
1113103-020

Kod:
4014835724525

Hajm:
20 L, ecobox

Artikel:
1113103-B20

Hajm:
60 L

Artikel:
1113103-060

Kod:
4014835724563

Hajm:
60 L, bosilgan barrel

Artikel:
1113103-D60

Hajm:
208 L

Artikel:
1113103-208

Kod:
4014835724587

Hajm:
208 L, bosilgan barrel

Artikel:
1113103-D28

Hajm:
1 000 L

Artikel:
1113103-700

RAVENOL Turbo-C HD-C 15W-40 mineral motor moyi yengil benzin va dizel dvigatellari uchun, turboquvvatlagich va to‘g‘ridan-to‘g‘ri yoqilg‘i purkash tizimi bilan yoki ularsiz. Ishqalanish va eskirishni minimal darajada kamaytiradi.

Benzinli dvigatellarda qo‘llash uchun mos keladi. Mustahkam moy plyonkasi hosil qiladi va kesish kuchlanishiga yuqori chidamlilik, shuningdek, yaxshi tozalash xususiyatlari va qarishga yuqori chidamlilikni ta’minlaydi.

Qo‘llanish sohasi:

Yil davomida aralash avtopark uchun yagona motor moyi sifatida qo‘llash mumkin. Og‘ir yukli tijorat transport vositalari uchun moy almashtirish intervalini 45 ming km yoki 500 moto-soatgacha uzaytirish mumkin, agar bu avtomobil ishlab chiqaruvchisi tomonidan ruxsat etilgan bo‘lsa.

RAVENOL Turbo-C HD-C 15W-40 qo‘llanishi quyidagilarni ta’minlaydi:

Kesish kuchlanishiga yaxshi chidamlilik
Yuqori oksidlanishga chidamlilik
Shlam hosil bo‘lishining oldini olish
Ajoyib yopishqoqlik-harorat xususiyatlari
Katalizatorlarning tozaligini saqlash
A’lo darajadagi yuvish va dispersiya xususiyatlari
Cheklangan moylash sharoitida ham yuqori xavfsizlik
Sovuq ishga tushirishda mukammal xususiyatlar

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, VW 501 01, VW 505 00, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, VW 501 01, VW 505 00, ZF TE-ML 07C
Brand		RAVENOL		RAVENOL
Viskozite		15W-40		15W-40
Turi		Mineral		Mineral
API		CF, CF-4, SL		CF, CF-4, SL
ACEA		A3, B4, E2		A3, B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C
Zichlik 20°С da	g/cm³	873	EN ISO 12185	873 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viskozite indeksi VI		137	DIN ISO 2909	137 DIN ISO 2909
Qotish harorati	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	8.5	ASTM D2896	8.5 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C

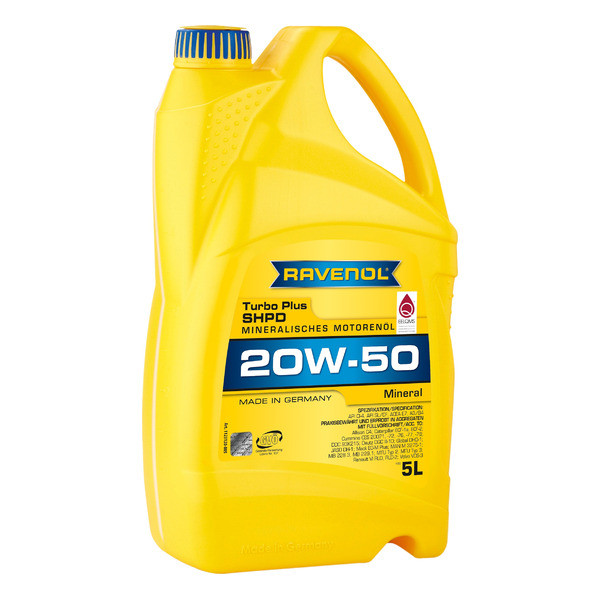

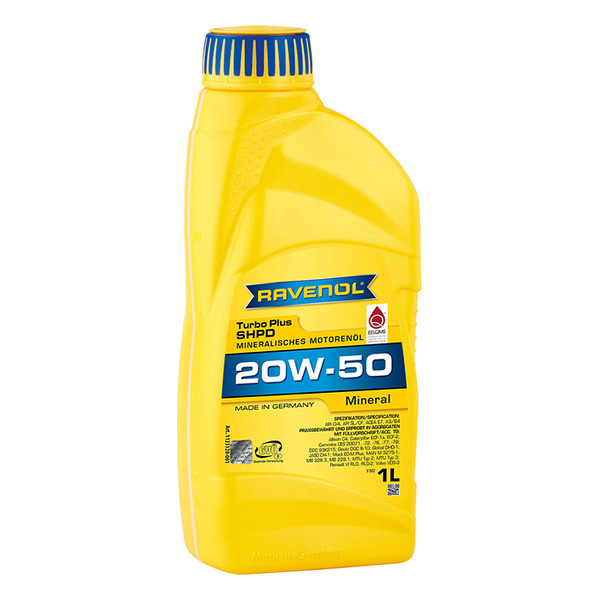

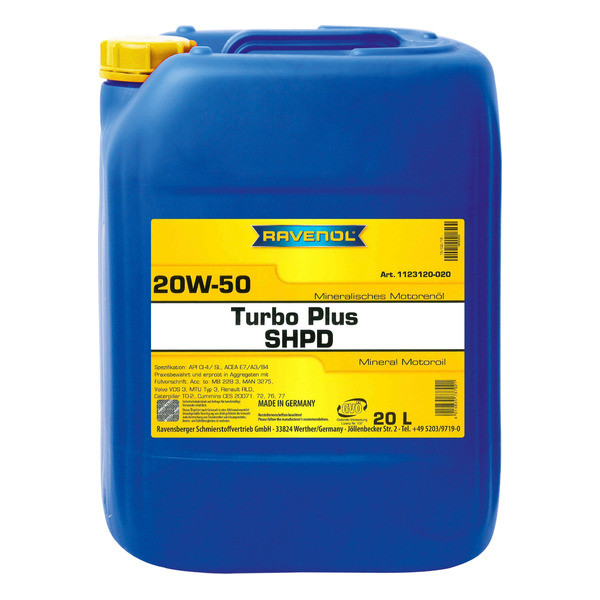

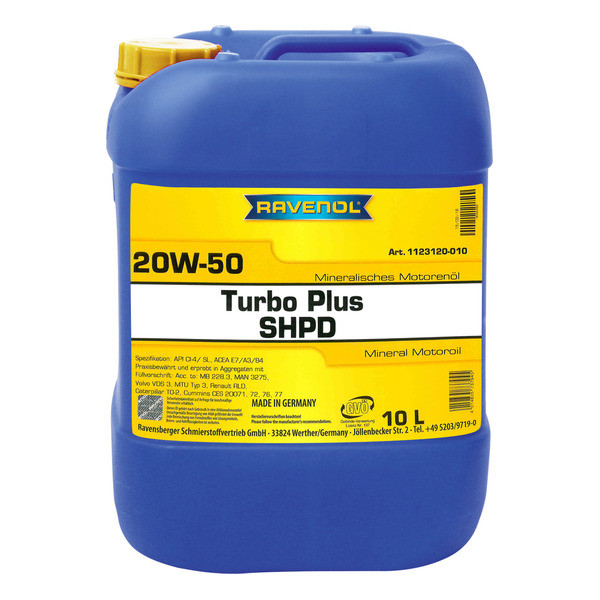

Turbo Plus SHPD 20W-50

RAVENOL Turbo-Plus SHPD 20W-50 motor moyi Germaniyada yuqori sifatli mineral bazaviy moy asosida ishlab chiqarilgan bo'lib, gidrokreking bazaviy moyi va maxsus ishlab chiqilgan qo'shimchalar paketidan foydalanilgan.

Talablarga muvofiqligi:
Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

Online xarid qilish

batafsil

SAE: 20W-50

API: CF, CI-4, SL

ACEA: A3, B4, E7

Analoglar OEM:
FEBI 32921, FEBI 32922, FEBI 32923, FEBI 32924, FEBI 38408, GM 109206, GM 88865546, GM 88900131, GM 88900133, VAG G052167A9, VAG G052167A9

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1123120-001

Hajm:
5 L

Artikel:
1123120-005

Hajm:
10 L

Artikel:
1123120-010

Hajm:
20 L

Artikel:
1123120-020

Kod:
4014835737921

Hajm:
20 L, ecobox

Artikel:
1123120-B20

Hajm:
60 L

Artikel:
1123120-060

Kod:
4014835737969

Hajm:
208 L

Artikel:
1123120-208

Hajm:
208 L, bosilgan barrel

Artikel:
1123120-D28

Hajm:
1 000 L

Artikel:
1123120-700

RAVENOL Turbo-Plus SHPD 20W-50 motor moyi Germaniyada yuqori sifatli mineral bazaviy moy asosida ishlab chiqarilgan bo'lib, gidrokreking bazaviy moyi va maxsus ishlab chiqilgan qo'shimchalar paketidan foydalanilgan.

RAVENOL Turbo-Plus SHPD 20W-50 motor moyi aynan yuk mashinalari, karer va qurilish texnikasining dizel dvigatellari uchun ishlab chiqilgan bo'lib, ushbu turdagi avtomobillar uchun eng yaxshi motor moylaridan biridir. RAVENOL Turbo-Plus SHPD 20W-50 motor moyi eng qiyin sharoitlarda va eng yuqori yuklamalar bilan ishlaydigan dizel dvigatellari uchun mo'ljallangan.

RAVENOL Turbo Plus SHPD 20W-50 qo'llanilishi ta'minlaydi:

Sekinishga yaxshi qarshilik
Oksidlanishga yuqori qarshilik
Ajoyib viskozite-issiqxona xususiyatlari
Zo'r tozalash va dispersiyon xususiyatlari
Yarim qurigan moylash sharoitlarida yuqori mustahkamlik zaxirasi
Yaxshi ishga tushirish xususiyatlari
Qora so'rilishning oldini olish
Katalizatorlar bilan maksimal moslik

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Typ 2, MTU Typ 3, Renault RLD-2, Renault VI RLD, VOLVO VDS-3		Allison C4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Typ 2, MTU Typ 3, Renault RLD-2, Renault VI RLD, VOLVO VDS-3
Viskozite		20W-50		20W-50
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, CI-4, SL		CF, CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Talablarga mos keladi		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Zichlik 20°С da	g/cm³	878	EN ISO 12185	878 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	18.4	DIN 51562-1	18.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	162.1	DIN 51562-1	162.1 mm²/s DIN 51562-1
Viskozite indeksi VI		127	DIN ISO 2909	127 DIN ISO 2909
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11.3	ASTM D2896	11.3 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Allison C-4, Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-M Plus, MAN M 3275, MB 228.3, MB 229.1, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

ATF Dexron II E

RAVENOL ATF Dexron II E transmissiya gidravlik suyuqligi Germaniyada poli-alfa-olefinlar asosida va maxsus qo‘shimchalar qo‘llangan holda ishlab chiqarilgan.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)

Talablarga muvofiqligi:
Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

Online xarid qilish

batafsil

Analoglar OEM:
Alpine 0100641, Alpine 0100642, Alpine 0100643, Alpine 0100644, Alpine 0100645, Alpine 100641, Alpine 100642, Alpine 100643, Alpine 100644, Alpine 100645, Alpine 100645, Land Rover STC8261

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1211103-001

Kod:
4014835732612

Hajm:
4 L

Artikel:
1211103-004

Kod:
4014835732698

Hajm:
10 L

Artikel:
1211103-010

Kod:
4014835732643

Hajm:
20 L

Artikel:
1211103-020

Hajm:
20 L, ecobox

Artikel:
1211103-B20

Hajm:
60 L

Artikel:
1211103-060

Hajm:
60 L, bosilgan barrel

Artikel:
1211103-D60

Kod:
4014835732636

Hajm:
208 L

Artikel:
1211103-208

Hajm:
208 L, bosilgan barrel

Artikel:
1211103-D28

Hajm:
1 000 L

Artikel:
1211103-700

RAVENOL ATF Dexron II E transmissiya gidravlik suyuqligi Germaniyada poli-alfa-olefinlar asosida va maxsus qo‘shimchalar qo‘llangan holda ishlab chiqarilgan.

Bu sintetik transmissiya moyi bo‘lib, avtomatik uzatmalar quti, gidrokuchaytirgichlar, kabina ag‘darish mexanizmlari va past qotish harorati, mexanik yuklamalarga yuqori barqarorlik hamda yuqori viskozit indeksiga ega moy talab qilinadigan boshqa gidravlik tizimlar uchun mo‘ljallangan.

U rasmiy tasdiqlangan va quyidagi original suyuqliklar uchun analog hisoblanadi: Voith 55.6336.3x (uzaytirilgan almashtirish oralig‘i G1363), MB 236.8, Allison C4-32652009 (ATF II E).

Quyidagi spetsifikatsiyalarga javob beradi: Caterpillar TO-2, Ford Mercon, General Motors Dexron II E, MAN 339 turi V-2/339 turi Z-2, MB 236.5, ZF 09X/14B/16L/TE-ML 04D

RAVENOL ATF Dexron II E quyidagilarni ta’minlaydi:

Eskirish, shlam, korroziya va yopishuvga qarshi ishonchli himoya
Viskoza-harorat ko‘rsatkichlarining kesishga nisbatan yaxshi chidamliligi
Juda past va juda yuqori haroratlarda ishlatish imkoniyati
Yuqori termik barqarorlik
Yuqori yuklamalarda ham ko‘pik hosil bo‘lmasligi
Har qanday turdagi muhrlovchi materiallar bilan moslik

Parametr	O‘lchov birligi	Qiymat	Sinov
ATF spetsifikatsiyalari		Dexron II E		Dexron II E
Tavsiyalar		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 V2, MAN 339 Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 V2, MAN 339 Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L
Brand		RAVENOL		RAVENOL
Turi		Sintetik		Sintetik
Ishlab chiqaruvchi tomonidan ma’qullangan		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)
Talablarga mos keladi		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L
Spetsifikatsiyalarga mos keladi		Ford MERCON®, GM Dexron® II E		Ford MERCON®, GM Dexron® II E
Zichlik 20°С da	g/cm³	834	EN ISO 12185	834 g/cm³ EN ISO 12185
Rang		Qizil	ingl	Qizil ingl
Viskozite 100°С da	mm²/s	7.5	DIN 51562-1	7.5 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	32	DIN 51562-1	32 mm²/s DIN 51562-1
Viskozite -40°С da	mPa*s	8.3	ASTM D2983	8.3 mPa*s ASTM D2983
Viskozite indeksi VI		191	DIN ISO 2909	191 DIN ISO 2909
Qotish harorati	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	1.7	ASTM D2896	1.7 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

ATF Fluid

Transmissiya gidravlik suyuqligi RAVENOL ATF Fluid Germaniyada yuqori darajada tozalangan mineral baza moyi asosida, maxsus qo‘shimchalar qo‘llanilgan holda ishlab chiqarilgan bo‘lib, bu avtomatik uzatma qutilari, gidrokuchaytirgichlar, kabina ag‘darish tizimlari va boshqa gidravlik qurilmalarda qo‘llaniladigan, past muzlash harorati, mexanik yuklamalarga yuqori chidamlilik va yuqori yopishqoqlik indeksiga ega suyuq moy hisoblanadi.

Talablarga muvofiqligi:
Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat

Online xarid qilish

batafsil

Analoglar OEM:
MB A0009892603, MB A000989260310, Nissan KLE2100002, Nissan KLE2100002, Nissan KLE2100004, UAZ 000000473401400, UAZ 473401400

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1213101-001

Kod:
4014835733411

Hajm:
4 L

Artikel:
1213101-004

Kod:
4014835733497

Hajm:
10 L

Artikel:
1213101-010

Kod:
4014835733442

Hajm:
20 L

Artikel:
1213101-020

Hajm:
20 L, ecobox

Artikel:
1213101-B20

Hajm:
60 L

Artikel:
1213101-060

Kod:
4014835733466

Hajm:
208 L

Artikel:
1213101-208

Kod:
4014835733480

Hajm:
1 000 L

Artikel:
1213101-700

Transmissiya gidravlik suyuqligi RAVENOL ATF Fluid Germaniyada yuqori darajada tozalangan mineral baza moyi asosida, maxsus qo‘shimchalar qo‘llanilgan holda ishlab chiqarilgan bo‘lib, bu avtomatik uzatma qutilari, gidrokuchaytirgichlar, kabina ag‘darish tizimlari va boshqa gidravlik qurilmalarda qo‘llaniladigan, past muzlash harorati, mexanik yuklamalarga yuqori chidamlilik va yuqori yopishqoqlik indeksiga ega suyuq moy hisoblanadi.

ATF Fluid qo‘llanishi quyidagilarni ta’minlaydi:

Eskirishdan a’lo darajada himoya
Haroratlarning keng diapazonida yaxshi yopishqoqlik ko‘rsatkichlari
Eskirishdan a’lo darajada himoya
Oksidlanishga juda yaxshi chidamlilik, ko‘piklanmaslik
Cho‘kindi hosil bo‘lishining oldini olish va korroziyadan himoya
Nihoyatda past muzlash harorati
Muhrlovchi materiallarga nisbatan neytral ta’sir
Barcha ATF turdagi suyuqliklar, xususan Type A Suffix A bilan erituvchanlik va moslik

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 A, MB 236.2, Renk Doromat, Type A Suffix A (TASA)		Allison C4, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 A, MB 236.2, Renk Doromat, Type A Suffix A (TASA)
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
Talablarga mos keladi		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat
Zichlik 20°С da	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Rang		Qizil	ingl	Qizil ingl
Viskozite 100°С da	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	34.6	DIN 51562-1	34.6 mm²/s DIN 51562-1
Viskozite indeksi VI		187	DIN ISO 2909	187 DIN ISO 2909
Qotish harorati	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat		Allison C-4, ATF TASA, Caterpillar TO-2, DTFR 13C120 (MB 236.2), MAN 339 Type A, MB 236.2, Renk Doromat

ATF Dexron D II

RAVENOL ATF Dexron D II – avtomatik uzatma qutilari uchun mo‘ljallangan, maxsus qo‘shimchalar majmuasi bilan boyitilgan mineral transmissiya moyidir.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Voith H55.6335.xx

Talablarga muvofiqligi:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Online xarid qilish

batafsil

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1213102-001

Kod:
4014835733510

Hajm:
4 L

Artikel:
1213102-004

Kod:
4014835733596

Hajm:
10 L

Artikel:
1213102-010

Kod:
4014835733541

Hajm:
20 L

Artikel:
1213102-020

Kod:
4014835733527

Hajm:
20 L, ecobox

Artikel:
1213102-B20

Kod:
4014835787827

Hajm:
60 L

Artikel:
1213102-060

Kod:
4014835733565

Hajm:
208 L

Artikel:
1213102-208

Kod:
4014835733589

Hajm:
208 L, bosilgan barrel

Artikel:
1213102-D28

Hajm:
1 000 L

Artikel:
1213102-700

RAVENOL ATF Dexron D II – avtomatik uzatma qutilari uchun mo‘ljallangan, maxsus qo‘shimchalar majmuasi bilan boyitilgan mineral transmissiya moyidir.

Bu moy avtomatik uzatma qutilari, gidrokuchaytirgichlar, kabina ag‘darish tizimlari va boshqa gidravlik qurilmalar uchun ishlab chiqilgan bo‘lib, universal ATF suyuqligi sifatida qo‘llanishi mumkin.

RAVENOL ATF Dexron D II — bu ATF Type Dexron®-IID sifat darajasidagi suyuqlik tavsiya etilgan avtomatik uzatma qutilarida foydalanish uchun moslashtirilgan.

RAVENOL ATF Dexron D II qo‘llanishi quyidagilarni ta’minlaydi:

Eskirish, cho‘kindi, korroziya va yopishishdan ishonchli himoya
Yopishqoqlik-harorat ko‘rsatkichlarining siljishga qarshi yaxshi chidamliligi
Juda past va juda yuqori haroratlarda ham samarali ishlash
Yuqori issiqlik barqarorligi
Yuqori yuklamalarda ham ko‘piklanmaslik
Muhrlovchi materiallarga nisbatan neytral ta’sir
Barcha ATF brendlari bilan erituvchanlik va moslik

Parametr	O‘lchov birligi	Qiymat	Sinov
ATF spetsifikatsiyalari		Dexron D II		Dexron D II
Tavsiyalar		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
Ishlab chiqaruvchi tomonidan ma’qullangan		Voith H55.6335.xx		Voith H55.6335.xx
Talablarga mos keladi		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Spetsifikatsiyalarga mos keladi		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Mos keladi		CVT		CVT
Zichlik 20°С da	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Rang		Qizil	ingl	Qizil ingl
Viskozite 100°С da	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viskozite indeksi VI		185	DIN ISO 2909	185 DIN ISO 2909
Qotish harorati	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

ATF Dexron III H

RAVENOL ATF DEXRON III H – bu avtomatik uzatma qutilari uchun mo‘ljallangan sintetik ATF moyi bo‘lib, Dexron III H turidagi transmissiya suyuqligini qo‘llash talab etilgan hollarda ishlatiladi.Gidrokraking asosidagi baza moyi va maxsus qo‘shimchalar majmuasi asosida ishlab chiqilgan bo‘lib, avtomatik uzatma qutisining uzluksiz ishlashini ta’minlaydi.RAVENOL ATF DEXRON III H, ATF Dexron F III spetsifikatsiyasiga muvofiq moy talab etilgan hollarda mos keluvchi almashtiruvchi suyuqlik hisoblanadi.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Talablarga muvofiqligi:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

Online xarid qilish

batafsil

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1212100-001

Kod:
4014835732810

Hajm:
4 L

Artikel:
1212100-004

Kod:
4014835732896

Hajm:
10 L

Artikel:
1212100-010

Kod:
4014835732841

Hajm:
20 L

Artikel:
1212100-020

Kod:
4014835732827

Hajm:
20 L, ecobox

Artikel:
1212100-B20

Kod:
4014835787025

Hajm:
60 L

Artikel:
1212100-060

Kod:
4014835732865

Hajm:
60 L, bosilgan barrel

Artikel:
1212100-D60

Kod:
4014835732834

Hajm:
208 L

Artikel:
1212100-208

Kod:
4014835732889

Hajm:
208 L, bosilgan barrel

Artikel:
1212100-D28

Kod:
4014835732803

Hajm:
1 000 L

Artikel:
1212100-700

RAVENOL ATF DEXRON III H – bu avtomatik uzatma qutilari uchun mo‘ljallangan sintetik ATF moyi bo‘lib, Dexron III H turidagi transmissiya suyuqligini qo‘llash talab etilgan hollarda ishlatiladi.
Gidrokraking asosidagi baza moyi va maxsus qo‘shimchalar majmuasi asosida ishlab chiqilgan bo‘lib, avtomatik uzatma qutisining uzluksiz ishlashini ta’minlaydi.
RAVENOL ATF DEXRON III H, ATF Dexron F III spetsifikatsiyasiga muvofiq moy talab etilgan hollarda mos keluvchi almashtiruvchi suyuqlik hisoblanadi.

Ushbu mahsulot aynan avtomatik transmissiyalar uchun ishlab chiqilgan. ATF Dexron III H sifat darajasiga mos keluvchi suyuqlik qo‘llanilishi talab etilgan avtomatik transmissiyalarda qo‘llaniladi. Boshqa ATF suyuqliklari bilan aralashtirilishi mumkin. RAVENOL ATF DEXRON III H quyilishidan avval eski suyuqlikni to‘liq chiqarib yuborish tavsiya etiladi.

RAVENOL ATF Dexron III H qo‘llanishi quyidagilarni ta’minlaydi:

Qishki past haroratlarda ham juda yaxshi moylash xossalari
Doimiy yuqori yopishqoqlik indeksi
Ekstremal harorat va ish sharoitlarida ham eskirishdan himoyalangan detallar ustida barqaror moy plyonkasi
Oksidlanishga yuqori chidamlilik
Eskirish, korroziya va ko‘piklanishdan kompleks himoya
Muftaning muvofiqlashtirilgan ishlashi
Muhrlovchi materiallarga nisbatan neytral ta’sir
Inhibitorlar yordamida rangli metallarga nisbatan neytral ta’sir

Parametr	O‘lchov birligi	Qiymat	Sinov
ATF spetsifikatsiyalari		Dexron III H		Dexron III H
Tavsiyalar		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Turi		Sintetik		Sintetik
Ishlab chiqaruvchi tomonidan ma’qullangan		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Talablarga mos keladi		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Spetsifikatsiyalarga mos keladi		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Mos keladi		Nissan		Nissan
Mahsulotlarga mos keladi		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Zichlik 20°С da	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Rang		Qizil	ingl	Qizil ingl
Viskozite 100°С da	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viskozite indeksi VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield usuli bo‘yicha viskozite -40°C da	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Qotish harorati	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Ko‘pik hosil bo‘lishi I	24°С da	0/0	ASTM D892	0/0 24°С da ASTM D892
Ko‘pik hosil bo‘lishi II	93.5°C da	0/0	ASTM D892	0/0 93.5°C da ASTM D892
Ko‘pik hosil bo‘lishi III	24°С dan 93.5°C gacha	0/0	ASTM D892	0/0 24°С dan 93.5°C gacha ASTM D892
Misga nisbatan korroziya testi	121°С / 3 soat	1b	ASTM D130	1b 121°С / 3 soat ASTM D130
Ishqoriy son	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Expert SHPD 10W-40

RAVENOL Expert SHPD 10W-40 – yarim sintetik, oson oqadigan motor moyi, yuqori yuklangan turbodizel dvigatellari va benzinli dvigatellar uchun yil davomida foydalanishga mo'ljallangan.

Ishlab chiqaruvchi tomonidan ma’qullangan:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00

Online xarid qilish

batafsil

SAE: 10W-40

API: CI-4, SL

ACEA: A3, B4, E4, E7

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1122105-001

Kod:
4014835725812

Hajm:
5 L

Artikel:
1122105-005

Kod:
4014835725850

Hajm:
7 L

Artikel:
1122105-007

Kod:
4014835853515

Hajm:
10 L

Artikel:
1122105-010

Kod:
4014835725843

Hajm:
20 L

Artikel:
1122105-020

Kod:
4014835725829

Hajm:
20 L, ecobox

Artikel:
1122105-B20

Kod:
4014835776227

Hajm:
60 L

Artikel:
1122105-060

Kod:
4014835725867

Hajm:
60 L, bosilgan barrel

Artikel:
1122105-D60

Kod:
4014835839533

Hajm:
208 L

Artikel:
1122105-208

Kod:
4014835725881

Hajm:
208 L, bosilgan barrel

Artikel:
1122105-D28

Kod:
4014835725805

Hajm:
1 000 L

Artikel:
1122105-700

RAVENOL Expert SHPD 10W-40 – yarim sintetik, oson oqadigan motor moyi, yuqori yuklangan turbodizel dvigatellari va benzinli dvigatellar uchun yil davomida foydalanishga mo'ljallangan.

Turli xil avtomobillarga mo'ljallangan universal motor moyi sifatida ishlatilishi mumkin. Gidrokraking asosidagi bazaviy moydan va sintetik komponentlar bilan maxsus tanlangan qo'shimchalar kompleksidan ishlab chiqarilgan bo'lib, bu moy uzoq muddatli almashtirish intervallarini va kam yog' va yoqilg'i sarfi bilan yuqori aşınmaya qarshi himoyani ta'minlaydi.

RAVENOL Expert SHPD 10W-40 past haroratlarda juda yaxshi oqish xususiyatiga ega. Barcha muhim tugunlar va detallarning tezda moylanishi, aşınmasını kamaytiradi. Maxsus tanlangan retseptura qisqa masofalarda tashish paytida ham dvigatelni tozaligini ta'minlaydi.

Foydalanish RAVENOL Expert SHPD 10W-40 quyidagi xususiyatlarni ta'minlaydi:

Ajoyib yuvish va dispersiyalash xususiyatlari
Past bug'lanish
Yuqori aşınmaya qarshi himoya
Yaxshi ishga tushirish xususiyatlari
Yog' va yoqilg'i sarfini kamaytirish
Ajoyib qarshilikka qarshi qarish

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00		Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
Viskozite		10W-40		10W-40
Brand		RAVENOL		RAVENOL
Turi		Yarim sintetik		Yarim sintetik
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E4, E7		A3, B4, E4, E7
Ishlab chiqaruvchi tomonidan ma’qullangan		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Mos keladi		DAF, IVECO, YaMZ		DAF, IVECO, YaMZ
Zichlik 20°С da	g/cm³	862	EN ISO 12185	862 g/cm³ EN ISO 12185
Rang		Jigarrang	ingl	Jigarrang ingl
Viskozite 100°С da	mm²/s	15.4	DIN 51562-1	15.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	109.7	DIN 51562-1	109.7 mm²/s DIN 51562-1
Viskozite indeksi VI		155	DIN ISO 2909	155 DIN ISO 2909
Past haroratli viskozite (ССС) -25°C da	mPa*s	6480	ASTM D5293	6480 mPa*s ASTM D5293
Qotish harorati	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
NOACK bug‘lanishi	%	7.3	ASTM D5800	7.3 % ASTM D5800
Yong‘in chiqish harorati	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11	ASTM D2896	11 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.25	DIN 51575	1.25 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00

Standard Truck 10W

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

batafsil

SAE: 10W

API: CF, SF

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Parametr	O‘lchov birligi	Qiymat	Sinov

Formel Diesel Super 20W-50

RAVENOL Formel Diesel Super 20W-50 - yuqori sifatli mineral motor moyi dizel dvigatellari uchun, turbinali va turbinanisiz yengil va yuk mashinalari uchun. Mustahkam moy plyonkasini ta'minlaydi va siljishga qarshi chidamlilik, ajoyib tozalash xususiyatlari va yuqori qarish qarshiligini ta'minlaydi.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

Online xarid qilish

batafsil

SAE: 20W-50

API: CF-4, CH-4

ACEA: A3, B4, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1123220-001

Hajm:
5 L

Artikel:
1123220-005

Kod:
4014835726451

Hajm:
10 L

Artikel:
1123220-010

Kod:
4014835726444

Hajm:
20 L

Artikel:
1123220-020

Kod:
4014835726420

Hajm:
20 L, ecobox

Artikel:
1123220-B20

Hajm:
60 L

Artikel:
1123220-060

Kod:
4014835726468

Hajm:
60 L, bosilgan barrel

Artikel:
1123220-D60

Hajm:
208 L

Artikel:
1123220-208

Kod:
4014835726482

Hajm:
208 L, bosilgan barrel

Artikel:
1123220-D28

Hajm:
1 000 L

Artikel:
1123220-700

RAVENOL Formel Diesel Super 20W-50 - yuqori sifatli mineral motor moyi dizel dvigatellari uchun, turbinali va turbinanisiz yengil va yuk mashinalari uchun. Mustahkam moy plyonkasini ta'minlaydi va siljishga qarshi chidamlilik, ajoyib tozalash xususiyatlari va yuqori qarish qarshiligini ta'minlaydi.

Qo'llaniladigan soha:

Avtomobillarni aralash parkida har mavsumda ishlatiladigan motor moyi sifatida qo'llaniladi. Yuk mashinalari dvigatellari uchun og'ir yuklar va uzoq muddatli almashtirish intervallari talablariga muvofiq tavsiya etiladi.

Qo'llanilishi Formel Diesel Super SAE 20W-50 ta'minlaydi:

Siljishga qarshi yaxshi chidamlilik
Oksidlanishga yuqori qarshilik
Ajoyib viskozlik-temperatura xususiyatlari
Yaxshi yuvish va disperslash xususiyatlari
Sovuq boshlanishda ajoyib xususiyatlar
Katalizatorlarning tozaligi
Hatto chegarali smazka sharoitlarida ham yuqori mustahkamlik zaxirasi

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar TO-2, MAN 271, MB 228.1, VOLVO VDS, VW 505 00		Allison C4, Caterpillar TO-2, MAN 271, MB 228.1, VOLVO VDS, VW 505 00
Viskozite		20W-50		20W-50
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF-4, CH-4		CF-4, CH-4
ACEA		A3, B4, E2		A3, B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00
Zichlik 20°С da	g/cm³	876	EN ISO 12185	876 g/cm³ EN ISO 12185
Rang		Jigarrang	ingl	Jigarrang ingl
Viskozite 100°С da	mm²/s	19	DIN 51562-1	19 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	161.4	DIN 51562-1	161.4 mm²/s DIN 51562-1
Viskozite indeksi VI		133	DIN ISO 2909	133 DIN ISO 2909
Past haroratli viskozite (CCS) -15°С da	mPa*s	6200	ASTM D5293	6200 mPa*s ASTM D5293
Qotish harorati	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11.1	ASTM D2896	11.1 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00		Allison C-4, Caterpillar TO-2, MAN 271, MB 228.1, Volvo VDS, VW 505.00

Standard Truck 30

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

batafsil

SAE: 30W

API: CF, SF

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Parametr	O‘lchov birligi	Qiymat	Sinov

Super Truck 30

RAVENOL Super Truck SAE 30 բարձրորակ արտադրանք է ՝ անվտանգության բարձր ցուցանիշներով:

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F

Online xarid qilish

batafsil

SAE: 30W

API: CF-4, SG

ACEA: B4, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ

Artikel:
1123720-020

Hajm:
20 լ, ecobox

Artikel:
1123720-B20

Hajm:
60 լ

Artikel:
1123720-060

Hajm:
208 լ

Artikel:
1123720-208

Hajm:
1 000 լ

Artikel:
1123720-700

RAVENOL Super Truck SAE 30 բարձրորակ արտադրանք է ՝ անվտանգության բարձր ցուցանիշներով:

կիրառման նշում

RAVENOL Super Truck SAE 30 - մոնո կարգի շարժիչային յուղ է, որն օգտագործվում է բեռնատարների դիզելային շարժիչներում՝ տուրբո լիցքավորիչով կամ առանց դրա: Խնդրում ենք հետևել շարժիչի արտադրողի առաջարկություններին:

բնութագրեր

բարձր օքսիդացման դիմադրություն
գերազանց մածուցիկության և ջերմաստիճանի բնութագրեր
համոզիչ լվացող և ցրող հատկություններ
լավ սառը գործարկման բնութագրեր
լավագույն պաշտպանություն կոռոզիայից
անվտանգության բարձր մարժա նույնիսկ սահմանային յուղման պայմաններում
հարմար է կատալիզատորների համար

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		30W		30W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
Zichlik 20°С da	g/cm³	882.9	EN ISO 12185	882.9 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	112.8	DIN 51562-1	112.8 mm²/s DIN 51562-1
Viskozite indeksi VI		99	DIN ISO 2909	99 DIN ISO 2909
Qotish harorati	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	272	DIN EN ISO 2592	272 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F

CATOEL TO-4 30

RAVENOL Catoel TO-4 SAE 30 – Germaniyada ishlab chiqarilgan, yuqori sifatli mineral bazaviy moy asosida tayyorlangan maxsus transmissiya moyi bo‘lib, maxsus qo‘shimchalar kompleksini o‘z ichiga oladi.

Ishlab chiqaruvchi tomonidan ma’qullangan:
ZF TE-ML 03C, ZF TE-ML 07F

Talablarga muvofiqligi:
Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)

Online xarid qilish

batafsil

SAE: 30W

API: CF, MT-1

Analoglar OEM:
Caterpillar 7X7855, Caterpillar 143487, Volvo 1161943, Volvo 15002772, Volvo 15002772

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 L

Artikel:
1310613-020

Kod:
4014835740327

Hajm:
20 L, ecobox

Artikel:
1310613-B20

Hajm:
208 L

Artikel:
1310613-208

Kod:
4014835740389

Hajm:
1 000 L

Artikel:
1310613-700

RAVENOL Catoel TO-4 SAE 30 – Germaniyada ishlab chiqarilgan, yuqori sifatli mineral bazaviy moy asosida tayyorlangan maxsus transmissiya moyi bo‘lib, maxsus qo‘shimchalar kompleksini o‘z ichiga oladi.

Karer va qurilish texnikasining transmissiya elementlari, gidravlik privodlari va muftalari uchun maxsus mo‘ljallangan. Ko‘p disklikli muftalar va tormozlar – ya’ni “ho‘l turdagi” tizimlar uchun qo‘llaniladi. Dvigatel moyi sifatida ishlatish mumkin emas.

Qo‘llash CATOEL TO-4 SAE 30 quyidagilarni ta’minlaydi:

Eskirishdan mukammal himoya
Oksidlanishga yuqori chidamlilik
A’lo yopishqoqlik-harorat xususiyatlari
Komponentlar xizmat muddatini uzaytirish
Agregatlarning maksimal xizmat muddatiga kafolat

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Eaton Fuller, Komatsu KES 07.868.1 (2002)		Allison C4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Eaton Fuller, Komatsu KES 07.868.1 (2002)
Viskozite		30W		30W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Ishlab chiqaruvchi tomonidan ma’qullangan		ZF TE-ML 03C, ZF TE-ML 07F		ZF TE-ML 03C, ZF TE-ML 07F
Talablarga mos keladi		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002)
Mos keladi		Eaton Fuller		Eaton Fuller
Zichlik 20°С da	g/cm³	889	EN ISO 12185	889 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	101.4	DIN 51562-1	101.4 mm²/s DIN 51562-1
Viskozite indeksi VI		105	DIN ISO 2909	105 DIN ISO 2909
Qotish harorati	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 10W

RAVENOL Catoel TO-4 SAE 10W – Germaniyada ishlab chiqarilgan, yuqori sifatli mineral bazaviy moy asosida tayyorlangan maxsus transmissiya moyi bo‘lib, maxsus qo‘shimchalar kompleksini o‘z ichiga oladi. Karer va qurilish texnikasining transmissiya elementlari, gidravlik privodlari va muftalari uchun maxsus mo‘ljallangan. Ko‘p disklikli muftalar va tormozlar – ya’ni “ho‘l turdagi” tizimlar uchun qo‘llaniladi. Dvigatel moyi sifatida ishlatish mumkin emas.

Ishlab chiqaruvchi tomonidan ma’qullangan:
ZF TE-ML 03C

Talablarga muvofiqligi:
Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F

Online xarid qilish

batafsil

SAE: 10W

API: CF, MT-1

Analoglar OEM:
Caterpillar 7X7852, Caterpillar 7X7852, Caterpillar 143485

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 L

Artikel:
1310610-020

Kod:
4014835740228

Hajm:
20 L, ecobox

Artikel:
1310610-B20

Hajm:
60 L

Artikel:
1310610-060

Hajm:
208 L

Artikel:
1310610-208

Kod:
4014835740280

Hajm:
208 L, bosilgan barrel

Artikel:
1310610-D28

Hajm:
1 000 L

Artikel:
1310610-700

RAVENOL Catoel TO-4 SAE 10W – Germaniyada ishlab chiqarilgan, yuqori sifatli mineral bazaviy moy asosida tayyorlangan maxsus transmissiya moyi bo‘lib, maxsus qo‘shimchalar kompleksini o‘z ichiga oladi. Karer va qurilish texnikasining transmissiya elementlari, gidravlik privodlari va muftalari uchun maxsus mo‘ljallangan. Ko‘p disklikli muftalar va tormozlar – ya’ni “ho‘l turdagi” tizimlar uchun qo‘llaniladi. Dvigatel moyi sifatida ishlatish mumkin emas.

Qo‘llash CATOEL TO-4 SAE 10W quyidagilarni ta’minlaydi:

Eskirishdan mukammal himoya
Oksidlanishga yuqori chidamlilik
A’lo yopishqoqlik-harorat xususiyatlari
Komponentlar xizmat muddatini uzaytirish
Agregatlarning maksimal xizmat muddatiga kafolat

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Eaton Fuller, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F		Allison C4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Eaton Fuller, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
Viskozite		10W		10W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, MT-1		CF, MT-1
Ishlab chiqaruvchi tomonidan ma’qullangan		ZF TE-ML 03C		ZF TE-ML 03C
Talablarga mos keladi		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 07F
Mos keladi		Eaton Fuller		Eaton Fuller
Zichlik 20°С da	g/cm³	860	EN ISO 12185	860 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	37.2	DIN 51562-1	37.2 mm²/s DIN 51562-1
Viskozite indeksi VI		123	DIN ISO 2909	123 DIN ISO 2909
Qotish harorati	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F		Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

CATOEL TO-4 50

Talablarga muvofiqligi:
Allison C-4, Caterpillar FD-1, Caterpillar TO-4, Caterpillar TO-4M, Komatsu KES 07.868.1 (2002), ZF TE-ML 03C, ZF TE-ML 07F

batafsil

SAE: 50W

API: CF, MT-1

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Parametr	O‘lchov birligi	Qiymat	Sinov

Super Truck 40

RAVENOL Super Truck SAE 40 is high alloyed HD engine oil with synthetic additives. It is suitable for diesel engines of trucks even with turbo charging. The high additive content guarantees an excellent effect regarding detergent, dispersant and anticorrosion characteristics.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B

Online xarid qilish

batafsil

SAE: 40W

API: CF-4, SG

ACEA: B4, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 լ

Artikel:
1123725-001

Hajm:
5 լ

Artikel:
1123725-005

Hajm:
10 լ

Artikel:
1123725-010

Hajm:
20 լ

Artikel:
1123725-020

Hajm:
20 լ, ecobox

Artikel:
1123725-B20

Hajm:
60 լ

Artikel:
1123725-060

Hajm:
208 լ

Artikel:
1123725-208

Hajm:
1 000 լ

Artikel:
1123725-700

RAVENOL Super Truck SAE 40 is high alloyed HD engine oil with synthetic additives. It is suitable for diesel engines of trucks even with turbo charging. The high additive content guarantees an excellent effect regarding detergent, dispersant and anticorrosion characteristics.

RAVENOL Super Truck SAE 40 is a top-quality product with high safety reserves.

Application Note

RAVENOL Super Truck SAE 40 is mono grade motor oil for use in truck diesel engines with or without turbo charger.

Please follow engine manufacturer’s recommendations.

Characteristics

High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
Good cold start characteristics
Best corrosion protection
High safety reserves even with boundary lubrication conditions
Suitable for catalysts

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		40W		40W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B
Zichlik 20°С da	g/cm³	883	EN ISO 12185	883 g/cm³ EN ISO 12185
Rang		Brown	տեսողական	Brown տեսողական
Viskozite 100°С da	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	131.5	DIN 51562-1	131.5 mm²/s DIN 51562-1
Viskozite indeksi VI		108	DIN ISO 2909	108 DIN ISO 2909
Qotish harorati	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	246	DIN EN ISO 2592	246 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B

Multi ATF HVS Fluid

RAVENOL Multi ATF HVS Fluid - sintetik, ko‘p funksiyali avtomatik transmissiya moyi bo‘lib, uzoq almashtirish intervallarini ta’minlaydigan ilg‘or texnologiyalar asosida ishlab chiqilgan. Bu mahsulot avtomatik va mexanik transmissiyalar, gidrotransformatorlar va turli xil rul boshqaruvi tizimlari uchun mo‘ljallangan.

Online xarid qilish

batafsil

Analoglar OEM:
BMW 83220403675, BMW 83222220442, BMW 83222220442, MB A001989220309, MB A990989070009, Nissan 999MPMTW00P

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 L

Artikel:
1211144-001

Kod:
4014835866591

Hajm:
4 L

Artikel:
1211144-004

Kod:
4014835866621

Hajm:
10 L

Artikel:
1211144-010

Kod:
4014835866652

Hajm:
20 L

Artikel:
1211144-020

Hajm:
20 L, ecobox

Artikel:
1211144-B20

Kod:
4014835866737

Hajm:
60 L

Artikel:
1211144-060

Hajm:
208 L

Artikel:
1211144-208

RAVENOL Multi ATF HVS Fluid - sintetik, ko‘p funksiyali avtomatik transmissiya moyi bo‘lib, uzoq almashtirish intervallarini ta’minlaydigan ilg‘or texnologiyalar asosida ishlab chiqilgan. Bu mahsulot avtomatik va mexanik transmissiyalar, gidrotransformatorlar va turli xil rul boshqaruvi tizimlari uchun mo‘ljallangan.

RAVENOL Multi ATF HVS Fluid avtomatik transmissiyalar, rul boshqaruvi va mufta tizimlari, gidravlik tizimlar hamda yengil va yuk avtomobillaridagi quvvatni tanlab uzatish qutilarida maksimal almashtirish intervallari uchun mos keladi.

RAVENOL Multi ATF HVS Fluid – ko‘plab ishlab chiqaruvchilarning talablariga javob beradigan va deyarli barcha odatiy avtomatik transmissiyalarda qo‘llanilishi mumkin bo‘lgan mahsulotdir. CVT avtomatik transmissiyalar uchun mos emas. Zarur bo‘lganda, Ford, GM, Toyota, Honda, Nissan, Hyundai, KIA, BMW, Mercedes, Volvo, VW, Audi va boshqa ko‘plab ishlab chiqaruvchilar talablariga muvofiq vaqtincha to‘ldirish moyi sifatida qo‘llanilishi mumkin, agar mos original moy mavjud bo‘lmasa.

RAVENOL Multi ATF HVS Fluid quyidagilarni ta’minlaydi:

Qishki past haroratlarda a’lo darajadagi moylash xossalari
Doimiy yuqori yopishqoqlik indeksi
Past muzlash harorati
Eskirish, korroziya va ko‘piklanishdan himoya
Juda yaxshi ishqalanish koeffitsienti
Muhrlovchi materiallarga nisbatan neytral ta’sir

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Aisin Warner Automatic Gearbox, Allison C3, Allison C4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DEXRON® III F, DEXRON® III H, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford MERCON®V, Ford Motorcraft XT-1-QF, Ford WSS-M2C919-E, Ford WSS-M2C922-A1, Ford WSS-M2C924-A, JWS 3309, MAN 339 A, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Mopar, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, Texaco TL 4634, VW TL 52025, VW TL 52162, VW TL 52990, VW TL 55025, ZF S671 090 170, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C3, Allison C4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DEXRON® III F, DEXRON® III H, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford MERCON®V, Ford Motorcraft XT-1-QF, Ford WSS-M2C919-E, Ford WSS-M2C922-A1, Ford WSS-M2C924-A, JWS 3309, MAN 339 A, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Mopar, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, Texaco TL 4634, VW TL 52025, VW TL 52162, VW TL 52990, VW TL 55025, ZF S671 090 170, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Brand		RAVENOL		RAVENOL
Turi		Sintetik		Sintetik
Talablarga mos keladi		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 922-A1, Ford WSS-M2C 924-A, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 922-A1, Ford WSS-M2C 924-A, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Mos keladi		Mopar		Mopar
Mahsulotlarga mos keladi		Motorcraft XT-1-QF, ZF S671 090 170		Motorcraft XT-1-QF, ZF S671 090 170
Zichlik 20°С da	g/cm³	845	EN ISO 12185	845 g/cm³ EN ISO 12185
Rang		Qizil	ingl	Qizil ingl
Viskozite 100°С da	mm²/s	7	DIN 51562-1	7 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	37.1	DIN 51562-1	37.1 mm²/s DIN 51562-1
Viskozite indeksi VI		153	DIN ISO 2909	153 DIN ISO 2909
Brookfield usuli bo‘yicha viskozite -40°C da	mPa*s	18.930	ASTM D2983	18.930 mPa*s ASTM D2983
Qotish harorati	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	230	DIN 51757	230 °C DIN 51757
Misga nisbatan korroziya testi	121°С / 3 soat	1 b	ASTM D130	1 b 121°С / 3 soat ASTM D130
Ruxsatnomalar		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 922-A1, Ford WSS-M2C 924-A, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Aisin Warner Automatic Gearbox, Allison C-3, Allison C-4, Allison TES-389, ATF LA 2634, ATF SP-III, BMW ATF 4, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C110 (MB 236.11), DTFR 13C120 (MB 236.2), DTFR 13C140 (MB 236.7), DTFR 13C170 (MB 236.9), DTFR 13C180 (MB 236.91), DTFR 38B100 (MB 236.3), ESSO JWS 3317, ESSO LT 71141, Fiat 9.55550-AV1, Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford MERCON® V, Ford WSS-M2C 919-E, Ford WSS-M2C 922-A1, Ford WSS-M2C 924-A, GM Dexron® III F, JWS 3309, MAN 339 L1, MAN 339 Type A, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, Mazda M-III, MB 236.1, MB 236.10, MB 236.11, MB 236.2, MB 236.3, MB 236.5, MB 236.6, MB 236.7, MB 236.9, MB 236.91, Texaco ETL 7045E, Texaco ETL 8072B, Texaco N402, VW TL 4634, VW TL 52025, VW TL 521 62, VW TL 52990, VW TL 55025, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Hydro-Fluid

RAVENOL Hydro-Fluid is a special oil, which fulfils the recommendations of all well-known manufacturers of agricultural tractors. Of course, it can also be used in transmission and hydraulic systems of modern tractors. High quality base oils and selected additives ensure a trouble-free operation of all power train elements in any season.

Talablarga muvofiqligi:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

Online xarid qilish

batafsil

API: GL-4

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 լ

Artikel:
1310101-005

Hajm:
20 լ

Artikel:
1310101-020

Hajm:
20 լ, ecobox

Artikel:
1310101-B20

Hajm:
60 լ

Artikel:
1310101-060

Hajm:
208 լ

Artikel:
1310101-208

Hajm:
1 000 լ

Artikel:
1310101-700

RAVENOL Hydro-Fluid is a special oil, which fulfils the recommendations of all well-known manufacturers of agricultural tractors. Of course, it can also be used in transmission and hydraulic systems of modern tractors. High quality base oils and selected additives ensure a trouble-free operation of all power train elements in any season.

Application Note

RAVENOL Hydro-Fluid has a wide range of application in the transmission and hydraulic systems of modern tractors.

RAVENOL Hydro-Fluid is excellently suitable for wet brake and clutch systems (power take-off clutches).

RAVENOL Hydro-Fluid can also be used as a compressor oil.

Characteristics

Excellent viscosity-temperature characteristics
Outstanding cold starting properties
Compelling detergent/dispersant properties
High resistance to ageing

Parametr	O‘lchov birligi	Qiymat	Sinov
Brand		RAVENOL		RAVENOL
API		GL-4		GL-4
Talablarga mos keladi		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Mos keladi		Atlas Copco Kompressor		Atlas Copco Kompressor
Zichlik 20°С da	g/cm³	861	EN ISO 12185	861 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viskozite indeksi VI		154	DIN ISO 2909	154 DIN ISO 2909
Qotish harorati	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

Super Truck 50

RAVENOL Super Truck SAE 50 բարձրորակ արտադրանք է ՝ անվտանգության բարձր ցուցանիշներով:

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E

Online xarid qilish

batafsil

SAE: 50W

API: CF-4, SG

ACEA: B4, E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
1 լ

Artikel:
1123726-001

Hajm:
5 լ

Artikel:
1123726-005

Hajm:
20 լ

Artikel:
1123726-020

Hajm:
20 լ, ecobox

Artikel:
1123726-B20

Hajm:
60 լ

Artikel:
1123726-060

Hajm:
208 լ

Artikel:
1123726-208

Hajm:
208 լ, տպագիր տակառ

Artikel:
1123726-D28

Hajm:
1 000 լ

Artikel:
1123726-700

RAVENOL Super Truck SAE 50 բարձրորակ արտադրանք է ՝ անվտանգության բարձր ցուցանիշներով:

կիրառման նշում

RAVENOL Super Truck SAE 50 - ը բարձրորակ շարժիչային յուղ է բեռնատար ավտոմեքենաների դիզելային շարժիչների համար: Խնդրում ենք հետևել շարժիչի արտադրողի առաջարկություններին:

բնութագրեր

բարձր օքսիդացման դիմադրություն
գերազանց մածուցիկության և ջերմաստիճանի բնութագրեր
համոզիչ լվացող և ցրող հատկություններ
լավ սառը գործարկման բնութագրեր
լավագույն պաշտպանություն կոռոզիայից
անվտանգության բարձր մարժա նույնիսկ սահմանային յուղման պայմաններում
հարմար է կատալիզատորների համար

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		50W		50W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF-4, SG		CF-4, SG
ACEA		B4, E2		B4, E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
Zichlik 20°С da	g/cm³	890	EN ISO 12185	890 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	18.3	DIN 51562-1	18.3 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	198.7	DIN 51562-1	198.7 mm²/s DIN 51562-1
Viskozite indeksi VI		101	DIN ISO 2909	101 DIN ISO 2909
Qotish harorati	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	258	DIN EN ISO 2592	258 °C DIN EN ISO 2592
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E		Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E

Standard Truck 40

օգտագործման նշումRAVENOL Standard Truck SAE 40 - ը բարձրորակ շարժիչային յուղ է բեռնատար ավտոմեքենաների դիզելային շարժիչների համար: Հարմար է նաև ստացիոնար կայանքների համար:

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

Online xarid qilish

batafsil

SAE: 40W

API: CF, SF

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ

Artikel:
1123625-020

Hajm:
208 լ

Artikel:
1123625-208

Hajm:
1 000 լ

Artikel:
1123625-700

օգտագործման նշում

RAVENOL Standard Truck SAE 40 - ը բարձրորակ շարժիչային յուղ է բեռնատար ավտոմեքենաների դիզելային շարժիչների համար: Հարմար է նաև ստացիոնար կայանքների համար:

բնութագրեր

բարձր օքսիդացման դիմադրություն
գերազանց մածուցիկության և ջերմաստիճանի բնութագրեր
համոզիչ լվացող և ցրող հատկություններ
բարձր անվտանգության մարժա
լավ սառը մեկնարկի կատարում
ավելի լավ պաշտպանություն կոռոզիայից
հարմար է կատալիզատորների համար
նվազեցում արտանետումների

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		40W		40W
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		CF, SF		CF, SF
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A
Zichlik 20°С da	g/cm³	896	EN ISO 12185	896 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	165.8	DIN 51562-1	165.8 mm²/s DIN 51562-1
Viskozite indeksi VI		97	DIN ISO 2909	97 DIN ISO 2909
Qotish harorati	°C	-24	DIN ISO 3016	-24 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	254	DIN EN ISO 2592	254 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A

STOU 5W-30

RAVENOL STOU SAE 5W-30 is a modern multi-purpose oil for agricultural machines, excavators and construction machines. It is made of high quality base oils and selected additives. It is a special oil, which meets the recommendations of all well-known field tractors.

Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Online xarid qilish

batafsil

SAE: 5W-30

API: CG-4, GL-4

ACEA: E2

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
20 լ

Artikel:
1310108-020

Hajm:
60 լ

Artikel:
1310108-060

Hajm:
208 լ

Artikel:
1310108-208

RAVENOL STOU SAE 5W-30 is a modern multi-purpose oil for agricultural machines, excavators and construction machines. It is made of high quality base oils and selected additives. It is a special oil, which meets the recommendations of all well-known field tractors.

RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).

Application Note

RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parametr	O‘lchov birligi	Qiymat	Sinov
Viskozite		5W-30		5W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4		CG-4, GL-4
ACEA		E2		E2
Talablarga mos keladi		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Zichlik 20°С da	g/cm³	856	EN ISO 12185	856 g/cm³ EN ISO 12185
Rang		tan	տեսողական	tan տեսողական
Viskozite 100°С da	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	70.8	DIN 51562-1	70.8 mm²/s DIN 51562-1
Viskozite indeksi VI		161	DIN ISO 2909	161 DIN ISO 2909
Qotish harorati	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	11.8	ASTM D2896	11.8 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	1.8	DIN 51575	1.8 %wt. DIN 51575
Ruxsatnomalar		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

UTTO CVT Fluid

RAVENOL UTTO CVT Fluid is a combined transmission and hydraulic oil for agricultural, forestry and construction machinery. It is a special developed universal oil which can be used in combined hydraulic and transmission systems as well as in wet brakes in modern machines. High quality base oils and selected additives guarantee trouble-free operation of all aggregates at at any seasons.

Talablarga muvofiqligi:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

Online xarid qilish

batafsil

API: GL-4

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 լ

Artikel:
1310715-005

Hajm:
10 լ

Artikel:
1310715-010

Hajm:
20 լ

Artikel:
1310715-020

Hajm:
20 լ, ecobox

Artikel:
1310715-B20

Hajm:
60 լ

Artikel:
1310715-060

Hajm:
60 լ, տպագիր տակառ

Artikel:
1310715-D60

Hajm:
208 լ

Artikel:
1310715-208

Hajm:
208 լ, տպագիր տակառ

Artikel:
1310715-D28

RAVENOL UTTO CVT Fluid is a combined transmission and hydraulic oil for agricultural, forestry and construction machinery. It is a special developed universal oil which can be used in combined hydraulic and transmission systems as well as in wet brakes in modern machines. High quality base oils and selected additives guarantee trouble-free operation of all aggregates at at any seasons.

RAVENOL UTTO CVT Fluid offers a wide range of applications as it meets a large number of specifications.

Application Note

RAVENOL UTTO CVT Fluid was specially developed for use in CVT transmissions and therefore offers optimized friction behavior and maximum wear protection.

RAVENOL UTTO CVT Fluid is suitable for wet brakes in powershift clutches and auxiliary drives.The product is not suitable as an engine oil.

Characteristics

a very high stable viscosity index for year-round use
a very low pour point
a high oxidation stability
protection against corrosion and wear
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives
zincfree formulation
very good water tolerance in the hydraulic and transmission circuit

Parametr	O‘lchov birligi	Qiymat	Sinov
Ishqoriy son	mgKOH/g	2.38	ASTM D2896	2.38 mgKOH/g ASTM D2896
Sulfatli kul miqdori	%wt.	0.3	DIN 51575	0.3 %wt. DIN 51575
NOACK bug‘lanishi	%	8	ASTM D5800	8 % ASTM D5800
Ko‘piklanish ehtimoli (Seq. I	II	---	---	--- II ---
API		GL-4		GL-4
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
Talablarga mos keladi		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F
Spetsifikatsiyalarga mos keladi		SAE 80W		SAE 80W
Mos keladi		Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT		Argo VT-DRIVE, Case ICH CVXDrive, Fendt Vario CVT Transmissions, New Holland CVT
Mahsulotlarga mos keladi		Sauer Sunstrand/ Danfoss (hydrostatic trans fluid)		Sauer Sunstrand/ Danfoss (hydrostatic trans fluid)
Rang		Light brown	տեսողական	Light brown տեսողական
Ko‘pik hosil bo‘lishi I	24°С da	10/0	ASTM D892	10/0 24°С da ASTM D892
Ko‘pik hosil bo‘lishi II	93.5°C da	20/0	ASTM D892	20/0 93.5°C da ASTM D892
Ko‘pik hosil bo‘lishi III	24°С dan 93.5°C gacha	10/0	ASTM D892	10/0 24°С dan 93.5°C gacha ASTM D892
Viskozite 100°С da	mm²/s	9.3	DIN 51562-1	9.3 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	56.4	DIN 51562-1	56.4 mm²/s DIN 51562-1
Viskozite indeksi VI		147	DIN ISO 2909	147 DIN ISO 2909
To‘rtsharli ishqalanish mashinasida kiyilish testi	mm	0.5	DIN EN ISO 20623	0.5 mm DIN EN ISO 20623
Zichlik 20°С da	g/cm³	863.3	EN ISO 12185	863.3 g/cm³ EN ISO 12185
Yong‘in chiqish harorati	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Qotish harorati	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Ruxsatnomalar		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Case IH MS 1209, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3525, CNH MAT 3540, Deutz-Fahr T3500 CVT, Deutz-Fahr T5400 CVT, Ford ESN-M2C 134-D, Ford ESN-M2C 86-C, John Deere J20 C, Kubota UDT Fluid, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, SAE 80W, Sperry Vickers M2950S/I-280S, Valtra G2-08, Volvo VDS CVT, Volvo WB 101, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06E, ZF TE-ML 06F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

Getriebeoel UTTO

Zamonaviy traktorlar uchun mo‘ljallangan mineral moy. Universal transmissiya va gidravlik moyi sifatida qo‘llanilishi mumkin.

Ishlab chiqaruvchi tomonidan ma’qullangan:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Talablarga muvofiqligi:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, FNHA 2-C-201.00, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K

Online xarid qilish

batafsil

API: GL-4

Analoglar OEM:
Alpine 0100803, Alpine 0100804, Alpine 0100805, Honda 0820899903HE, Volvo 11706212, Volvo 11998770, Volvo VOE11706212, Volvo VOE11998770, ZF 0671090535, ZF 0671090536, ZF 0671090537, ZF 0681200752, ZF 0681200752, ZF 0769126671

Mavjud qadoqlash
To‘liq tavsif
Mahsulot parametrlari

Hajm:
5 L

Artikel:
1310700-005

Hajm:
10 L

Artikel:
1310700-010

Kod:
4014835740648

Hajm:
20 L

Artikel:
1310700-020

Kod:
4014835740624

Hajm:
20 L, ecobox

Artikel:
1310700-B20

Hajm:
60 L

Artikel:
1310700-060

Kod:
4014835740662

Hajm:
60 L, bosilgan barrel

Artikel:
1310700-D60

Hajm:
208 L

Artikel:
1310700-208

Kod:
4014835740686

Hajm:
1 000 L

Artikel:
1310700-700

Zamonaviy traktorlar uchun mo‘ljallangan mineral moy. Universal transmissiya va gidravlik moyi sifatida qo‘llanilishi mumkin.

Parametr	O‘lchov birligi	Qiymat	Sinov
Tavsiyalar		Allison C4, Case IH-MS 1206, Case IH-MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, FNHA-2-C201.00, Ford ESN-M2C 134 D, Ford ESN-M2C 86 B, Ford ESN-M2C 86 C, HVLP (DIN 51524-3), John Deere J20C, John Deere J21A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, NH 410B, Renault 180596, SDFG OT-1891A, VOLVO B6M WB 101 (BM Valmet AWB Achsen), White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K		Allison C4, Case IH-MS 1206, Case IH-MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, FNHA-2-C201.00, Ford ESN-M2C 134 D, Ford ESN-M2C 86 B, Ford ESN-M2C 86 C, HVLP (DIN 51524-3), John Deere J20C, John Deere J21A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, NH 410B, Renault 180596, SDFG OT-1891A, VOLVO B6M WB 101 (BM Valmet AWB Achsen), White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
Brand		RAVENOL		RAVENOL
Turi		Mineral		Mineral
API		GL-4		GL-4
Ishlab chiqaruvchi tomonidan ma’qullangan		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Talablarga mos keladi		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, FNHA 2-C-201.00, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, FNHA 2-C-201.00, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
Zichlik 20°С da	g/cm³	856	EN ISO 12185	856 g/cm³ EN ISO 12185
Rang		Sariq-jigarrang	ingl	Sariq-jigarrang ingl
Viskozite 100°С da	mm²/s	9.7	DIN 51562-1	9.7 mm²/s DIN 51562-1
Viskozite 40°С da	mm²/s	57.6	DIN 51562-1	57.6 mm²/s DIN 51562-1
Viskozite indeksi VI		152	DIN ISO 2909	152 DIN ISO 2909
Qotish harorati	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Yong‘in chiqish harorati	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Ishqoriy son	mgKOH/g	9.7	ASTM D2896	9.7 mgKOH/g ASTM D2896
NOACK bug‘lanishi	%	10.1	ASTM D5800	10.1 % ASTM D5800
Ruxsatnomalar		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, FNHA 2-C-201.00, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, CNH MAT 3505, CNH MAT 3506, CNH MAT 3525, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, FNHA 2-C-201.00, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

So‘rov bo‘yicha qidiruv natijalari «Allison C-4»

Agrar Synto 15W-40

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

STOU 10W-30

Qo‘llash bo‘yicha eslatma

Xususiyatlari

RAVENOL ATF Dexron II E quyidagilarni ta’minlaydi:

RAVENOL ATF Dexron D II qo‘llanishi quyidagilarni ta’minlaydi:

RAVENOL ATF Dexron III H qo‘llanishi quyidagilarni ta’minlaydi:

Standard Truck 10W

Standard Truck 30

կիրառման նշում

բնութագրեր

Qo‘llash CATOEL TO-4 SAE 30 quyidagilarni ta’minlaydi:

CATOEL TO-4 50

Application Note

Characteristics

Application Note

Characteristics

կիրառման նշում

բնութագրեր

օգտագործման նշում

բնութագրեր

Application Note

Characteristics

Application Note

Characteristics
