VIN / Rama, marka, model, avtomobil turi, agregat nomi yoki har qanday moyning artikeli bo‘yicha qidiruv:
RAVENOL STOU SAE 5W-30 is a modern multi-purpose oil for agricultural machines, excavators and construction machines. It is made of high quality base oils and selected additives. It is a special oil, which meets the recommendations of all well-known field tractors.
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
- Mavjud qadoqlash
- Mahsulot parametrlari
RAVENOL STOU SAE 5W-30 is a modern multi-purpose oil for agricultural machines, excavators and construction machines. It is made of high quality base oils and selected additives. It is a special oil, which meets the recommendations of all well-known field tractors.
RAVENOL STOU SAE 5W-30 is equally suited for engines, transmissions and hydraulic systems of modern tractors. High-quality base oils and selected additives ensure trouble-free operation of all units at all times of the year. Suitable for wet brakes and couplings (PTO couplings).
Application Note
RAVENOL STOU SAE 5W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 5W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as transmission oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- A high and stable viscosity index
- An excellent extreme pressure properties
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Viskozite | 5W-30 |
5W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4 |
CG-4, GL-4
|
||
| ACEA | E2 |
E2
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Zichlik 20°С da | g/cm³ | 856 | EN ISO 12185 |
856
g/cm³
EN ISO 12185
|
| Rang | tan | տեսողական |
tan
տեսողական
|
|
| Viskozite 100°С da | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 70.8 | DIN 51562-1 |
70.8
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| Qotish harorati | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 11.8 | ASTM D2896 |
11.8
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 1.8 | DIN 51575 |
1.8
%wt.
DIN 51575
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, John Deere J27, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
1 L
Artikel:
1123726-001
Hajm:
5 L
Artikel:
1123726-005
Hajm:
20 L
Artikel:
1123726-020
Hajm:
20 L, ecobox
Artikel:
1123726-B20
Hajm:
60 L
Artikel:
1123726-060
Hajm:
208 L
Artikel:
1123726-208
Hajm:
208 L, bosilgan barrel
Artikel:
1123726-D28
Hajm:
1 000 L
Artikel:
1123726-700
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | Allison C4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E |
Allison C4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
|
||
| Viskozite | 50W |
50W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Turi | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
|
||
| Zichlik 20°С da | g/cm³ | 890 | EN ISO 12185 |
890
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 18.3 | DIN 51562-1 |
18.3
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 198.7 | DIN 51562-1 |
198.7
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 101 | DIN ISO 2909 |
101
DIN ISO 2909
|
|
| Qotish harorati | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 258 | DIN EN ISO 2592 |
258
°C
DIN EN ISO 2592
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MB 228.0, MIL-L-2104 D, ZF TE-ML 04B, ZF TE-ML 04E
|
RAVENOL Gardenoil 4-Takt – Germaniyada ishlab chiqarilgan, 4 taktli maysazor o‘rish mashinalari dvigatellari uchun mineral asosli motor moyi. Maxsus tanlangan qo‘shimcha modda kompleksi aşinaga va korroziyaga yuqori darajada himoya ta’minlaydi. Oddiy ish haroratlarida qo‘llash tavsiya etiladi. Doimiy yopishqoqlik va siljish yo‘qotishlarining oldini oladi.
Talablarga muvofiqligi:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari
RAVENOL Gardenoil 4-Takt – Germaniyada ishlab chiqarilgan, 4 taktli maysazor o‘rish mashinalari dvigatellari uchun mineral asosli motor moyi. Maxsus tanlangan qo‘shimcha modda kompleksi aşinaga va korroziyaga yuqori darajada himoya ta’minlaydi. Oddiy ish haroratlarida qo‘llash tavsiya etiladi. Doimiy yopishqoqlik va siljish yo‘qotishlarining oldini oladi.
RAVENOL Gardenoil 4-Takt odatdagi ish haroratlarida foydalanish uchun tavsiya etiladi. Ish haroratida moyning yopishqoqligi butun almashtirish oralig‘ida barqaror bo‘lib qoladi.
4-Takt Gardenoil qo‘llanilishi quyidagilarni ta’minlaydi:
- Korroziyadan mukammal himoya
- Siljishga nisbatan yaxshi chidamlilik
- Oksidlanishga yuqori chidamlilik
- A’lo yopishqoqlik-harorat xususiyatlari
- Zo‘r yuvish va dispersiyalash xususiyatlari
- Yarim quruq moylash sharoitida yuqori mustahkamlik zaxirasi
- Muhr materiallariga nisbatan neytral ta’sir
- Yaxshi ishga tushirish xususiyatlari
- Silindrlar, porshenlar, klapanlar, yonish shamchalari va turbokompressorlar yuzasida yopishish, kokslanib qolish va cho‘kma hosil bo‘lishining oldini olish
- Katalizatorlar bilan maksimal moslik
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Dvigatelning taktligi | 4T |
4T
|
||
| Tavsiyalar | CCMC G4, Honda, Husqvarna, MB 227.0, MIL-L-2104 D, MIL-L-46152 B, Oleo-Mac, STIHL |
CCMC G4, Honda, Husqvarna, MB 227.0, MIL-L-2104 D, MIL-L-46152 B, Oleo-Mac, STIHL
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Viskozite | 30W |
30W
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| Talablarga mos keladi | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
||
| Mos keladi | Honda, Husqvarna, STIHL |
Honda, Husqvarna, STIHL
|
||
| Zichlik 20°С da | g/cm³ | 876 | EN ISO 12185 |
876
g/cm³
EN ISO 12185
|
| Rang | Jigarrang | ingl |
Jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 12.1 | DIN 51562-1 |
12.1
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 103.3 | DIN 51562-1 |
103.3
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Qotish harorati | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| Ruxsatnomalar | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL Super Truck SAE 40 is high alloyed HD engine oil with synthetic additives. It is suitable for diesel engines of trucks even with turbo charging. The high additive content guarantees an excellent effect regarding detergent, dispersant and anticorrosion characteristics.
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
1 լ
Artikel:
1123725-001
Hajm:
5 լ
Artikel:
1123725-005
Hajm:
10 լ
Artikel:
1123725-010
Hajm:
20 լ
Artikel:
1123725-020
Hajm:
20 լ, ecobox
Artikel:
1123725-B20
Hajm:
60 լ
Artikel:
1123725-060
Hajm:
208 լ
Artikel:
1123725-208
Hajm:
1 000 լ
Artikel:
1123725-700
RAVENOL Super Truck SAE 40 is high alloyed HD engine oil with synthetic additives. It is suitable for diesel engines of trucks even with turbo charging. The high additive content guarantees an excellent effect regarding detergent, dispersant and anticorrosion characteristics.
RAVENOL Super Truck SAE 40 is a top-quality product with high safety reserves.
Application Note
RAVENOL Super Truck SAE 40 is mono grade motor oil for use in truck diesel engines with or without turbo charger.
Please follow engine manufacturer’s recommendations.
Characteristics
- High oxidation stability
- Excellent viscosity temperature behaviour
- Convincing detergent and dispersant characteristics
- Good cold start characteristics
- Best corrosion protection
- High safety reserves even with boundary lubrication conditions
- Suitable for catalysts
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Viskozite | 40W |
40W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Turi | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B
|
||
| Zichlik 20°С da | g/cm³ | 883 | EN ISO 12185 |
883
g/cm³
EN ISO 12185
|
| Rang | Brown | տեսողական |
Brown
տեսողական
|
|
| Viskozite 100°С da | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 131.5 | DIN 51562-1 |
131.5
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Qotish harorati | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 246 | DIN EN ISO 2592 |
246
°C
DIN EN ISO 2592
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MB 235.12, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02H, ZF TE-ML 04A, ZF TE-ML 04B
|
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
20 L
Artikel:
1123720-020
Hajm:
20 L, ecobox
Artikel:
1123720-B20
Hajm:
60 L
Artikel:
1123720-060
Hajm:
208 L
Artikel:
1123720-208
Hajm:
1 000 L
Artikel:
1123720-700
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | Allison C4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Typ 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Typ 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
||
| Viskozite | 30W |
30W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Turi | Mineral |
Mineral
|
||
| API | CF-4, SG |
CF-4, SG
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
||
| Zichlik 20°С da | g/cm³ | 882.9 | EN ISO 12185 |
882.9
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 112.8 | DIN 51562-1 |
112.8
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 99 | DIN ISO 2909 |
99
DIN ISO 2909
|
|
| Qotish harorati | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 272 | DIN EN ISO 2592 |
272
°C
DIN EN ISO 2592
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F |
Allison C-4, Caterpillar TO-2, Deutz DQC I-02, MAN 270, MB 228.0, MIL-L-2104 D, MTU Type 1, ZF TE-ML 02C, ZF TE-ML 02H, ZF TE-ML 03A, ZF TE-ML 03C, ZF TE-ML 04B, ZF TE-ML 07F
|
Talablarga muvofiqligi:
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
1 L
Artikel:
1113300-001
Hajm:
4 L
Artikel:
1113300-004
Hajm:
5 L
Artikel:
1113300-005
Hajm:
10 L
Artikel:
1113300-010
Hajm:
20 L
Artikel:
1113300-020
Hajm:
20 L, ecobox
Artikel:
1113300-B20
Hajm:
60 L
Artikel:
1113300-060
Hajm:
208 L
Artikel:
1113300-208
Hajm:
1 000 L
Artikel:
1113300-700
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Viskozite | 30W |
30W
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| Talablarga mos keladi | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 876 | EN ISO 12185 |
876
g/cm³
EN ISO 12185
|
| Rang | Jigarrang | ingl |
Jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 12.1 | DIN 51562-1 |
12.1
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 103.3 | DIN 51562-1 |
103.3
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Qotish harorati | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.2 | ASTM D2896 |
7.2
mgKOH/g
ASTM D2896
|
| Ruxsatnomalar | CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.0, MIL-L-2104 D, MIL-L-46152 B
|
Talablarga muvofiqligi:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
1 L
Artikel:
1113311-001
Hajm:
4 L
Artikel:
1113311-004
Hajm:
5 L
Artikel:
1113311-005
Hajm:
20 L
Artikel:
1113311-020
Hajm:
20 L, ecobox
Artikel:
1113311-B20
Hajm:
60 L
Artikel:
1113311-060
Hajm:
208 L
Artikel:
1113311-208
Hajm:
1 000 L
Artikel:
1113311-700
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Viskozite | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD |
CD
|
||
| ACEA | B2 |
B2
|
||
| Talablarga mos keladi | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 14.1 | DIN 51562-1 |
14.1
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 106.1 | DIN 51562-1 |
106.1
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 135 | DIN ISO 2909 |
135
DIN ISO 2909
|
|
| Qotish harorati | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.1 | ASTM D2896 |
7.1
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Ruxsatnomalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
Talablarga muvofiqligi:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari

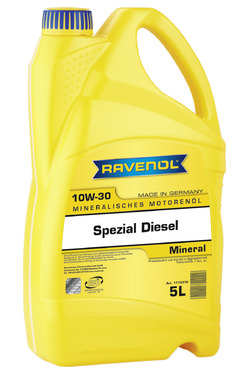

Hajm:
1 L
Artikel:
1113310-001
Hajm:
4 L
Artikel:
1113310-004
Hajm:
5 L
Artikel:
1113310-005
Hajm:
10 L
Artikel:
1113310-010
Hajm:
20 L
Artikel:
1113310-020
Hajm:
20 L, ecobox
Artikel:
1113310-B20
Hajm:
60 L
Artikel:
1113310-060
Hajm:
208 L
Artikel:
1113310-208
Hajm:
1 000 L
Artikel:
1113310-700
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Viskozite | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD |
CD
|
||
| ACEA | B2 |
B2
|
||
| Talablarga mos keladi | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 859 | EN ISO 12185 |
859
g/cm³
EN ISO 12185
|
| Rang | Jigarrang | ingl |
Jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 12.3 | DIN 51562-1 |
12.3
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 84.3 | DIN 51562-1 |
84.3
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| Qotish harorati | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.1 | ASTM D2896 |
7.1
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Ruxsatnomalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL STOU SAE 20W-40 universal mineral traktor moyi bo'lib, qishloq xo'jaligi texnikasi, ekskavatorlar va qurilish texnikasi uchun mo'ljallangan, yuqori sifatli, erituvchilardan tozalangan mineral asos moyi asosida ishlab chiqilgan. Bu professional yondashuvni talab qiladigan maxsus mahsulotdir. Suyuqlikni tanlash, uni almashtirish tartibi va davriyligi bo'yicha ishlab chiqaruvchi tavsiyalariga rioya qiling.
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
20 L, ecobox
Artikel:
1310114-B20
Hajm:
60 L
Artikel:
1310114-060
Hajm:
1 000 L
Artikel:
1310114-700
RAVENOL STOU SAE 20W-40 universal mineral traktor moyi bo'lib, qishloq xo'jaligi texnikasi, ekskavatorlar va qurilish texnikasi uchun mo'ljallangan, yuqori sifatli, erituvchilardan tozalangan mineral asos moyi asosida ishlab chiqilgan. Bu professional yondashuvni talab qiladigan maxsus mahsulotdir. Suyuqlikni tanlash, uni almashtirish tartibi va davriyligi bo'yicha ishlab chiqaruvchi tavsiyalariga rioya qiling.
RAVENOL STOU SAE 20W-40 zamonaviy traktor texnikasining dvigatellari, transmissiyalari va gidravlik tizimlari uchun qo'llaniladi. Yuqori sifatli asos moyi va maxsus tanlangan qo'shimchalar to'plami texnikaning yil bo'yi uzluksiz ishlashini kafolatlaydi.
Qo'llanilishi:
RAVENOL STOU SAE 20W-40 zamonaviy traktor texnikasining dvigatellari, transmissiyalari va gidravlik tizimlarida qo'llaniladi.
RAVENOL STOU SAE 20W-40 bitta moylash materialining barcha uzellarda universal qo'llanilishini ta'minlaydi: turboquvvatlagichli va turboquvvatlagichsiz benzin va dizel dvigatellari uchun motor moyi sifatida, transmissiya moyi sifatida (shu jumladan ho'l tormoz tizimlari) va gidravlik moy sifatida.
RAVENOL STOU SAE 20W-40 kompressor moyi sifatida ham qo'llanilishi mumkin.
Tasniflar va spetsifikatsiyalar:
RAVENOL STOU SAE 20W-40 quyidagi standartlar va spetsifikatsiyalarga mos keladi:
Spetsifikatsiyalar:
API CE, API SF, API GL-4, ACEA E1ACEA E2
Mos keladi:
Motor moyi: SAE 20W-40, API CG-4
Transmissiya moyi: API GL-4,
Tavsiya etiladi: FORD M2C-159C, MF M-1143/1144, MB 227.1, ZF TE-ML 06B, ZF TE-ML 07B, ALLISON C4, CATERPILLAR TO-2, FORD M2C-86A, FORD M2C-134D, JOHN DEERE J 27NH 420A NH 410B
Afzalliklar va xususiyatlar:
RAVENOL STOU SAE 20W-40 quyidagilarni ta'minlaydi:
- Yuqori detergentsiz va dispersiyalovchi xususiyatlar
- Eskirish, korroziya va ko'pik hosil bo'lishidan uzoq muddatli himoya
- Oksidlanishga yuqori chidamlilik
- Yuqori bosim ostida ajoyib xususiyatlar
- Yuqori va barqaror yopishqoqlik indeksi
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| Viskozite | 20W-40 |
20W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| Zichlik 20°С da | g/cm³ | 883 | EN ISO 12185 |
883
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 13.1 | DIN 51562-1 |
13.1
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 111.8 | DIN 51562-1 |
111.8
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 112 | DIN ISO 2909 |
112
DIN ISO 2909
|
|
| Qotish harorati | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 246 | DIN EN ISO 2592 |
246
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 13 | ASTM D2896 |
13
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 1.5 | DIN 51575 |
1.5
%wt.
DIN 51575
|
| Past haroratli viskozite (CCS) -15°С da | mPa*s | 6860 | ASTM D5293 |
6860
mPa*s
ASTM D5293
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MIL-L-2104 D, ZF TE-ML 06B, ZF TE-ML 07B
|
RAVENOL STOU SAE 10W-30
Talablarga muvofiqligi:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE: 10W-30
ACEA: E3
Analoglar OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
5 L
Artikel:
1310100-005
Hajm:
20 L, ecobox
Artikel:
1310100-B20
Hajm:
1 000 L
Artikel:
1310100-700
RAVENOL STOU SAE 10W-30
– bu qishloq xoʻjaligi texnikasi, ekskavatorlar va qurilish texnikasi uchun koʻp funksiyali moylash moyi boʻlib, uning tarkibiga yuqori sifatli tozalangan asosiy moylar va erituvchilar uchun qoʻshimchalar kiradi.
RAVENOL STOU SAE 10W-30
traktor ishlab chiqaruvchilarga maʼlum boʻlgan barcha moy tavsiyalariga mos keladi va zamonaviy traktorlarning dvigatellari, transmissiyalari va gidravlik tizimlarida foydalanishga tenglashtiriladi. Yilning istalgan vaqtida barcha agregatlarning uzluksiz ishlashini taʼminlaydi.
RAVENOL STOU SAE 10W-30
Hoʻl tormozlar va val muftasi (VOʻM) debriyaji uchun mos keladi.
Qoʻllanish sohasi:
RAVENOL STOU SAE 10W-30 zamonaviy traktorlarning dvigatellari, transmissiyalari va gidravlik tizimlarida keng qoʻllanish spektriga ega.
RAVENOL STOU SAE 10W-30 benzinli dvigatellar hamda kirish va turboquvvatli dizel dvigatellari uchun motor moyi sifatida, shuningdek transmissiya moyi (shu jumladan hoʻl tormozlar) sifatida va gidravlik moy sifatida mos keladi.
Afzalliklari va xususiyatlari:
- Kuchli dispersiya va yuvish qobiliyati
- Yeyilish, korroziya va koʻpikdan himoya
- Yuqori oksidlanishga chidamlilik
- Ajoyib ekstremal bosim xususiyatlari
- Yuqori va barqaror yopishqoqlik indeksi
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Viskozite | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Talablarga mos keladi | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Mos keladi | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Zichlik 20°С da | g/cm³ | 867 | EN ISO 12185 |
867
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 11.7 | DIN 51562-1 |
11.7
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 74.7 | DIN 51562-1 |
74.7
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 151 | DIN ISO 2909 |
151
DIN ISO 2909
|
|
| Qotish harorati | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 226 | DIN EN ISO 2592 |
226
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 12.4 | ASTM D2896 |
12.4
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 1.58 | DIN 51575 |
1.58
%wt.
DIN 51575
|
| Ruxsatnomalar | Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
|
RAVENOL Formel Extra SAE 20W-50 – yengil avtomobillar benzin va dizel dvigatellari uchun turbokompressorli va turbokompressorsiz hamda tijorat avtotransporti uchun ishlab chiqarilgan mineral motor moyi.
Talablarga muvofiqligi:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
4 L
Artikel:
1113120-004
Hajm:
20 L, ecobox
Artikel:
1113120-B20
Hajm:
208 L, bosilgan barrel
Artikel:
1113120-D28
Hajm:
1 000 L
Artikel:
1113120-700
RAVENOL Formel Extra SAE 20W-50 – yengil avtomobillar benzin va dizel dvigatellari uchun turbokompressorli va turbokompressorsiz hamda tijorat avtotransporti uchun ishlab chiqarilgan mineral motor moyi.
Eskirish va yeyilishni minimallashtiradi. Yopishqoqlik xususiyatlari butun yil davomida foydalanish imkonini beradi. Avtomobil ishlab chiqaruvchisi tomonidan boshqacha belgilanmagan bo'lsa, uzaytirilgan almashtirish intervallari.
Formel Extra SAE 20W-50 dan foydalanish quyidagilarni ta'minlaydi:
- Korroziyadan ajoyib himoya
- Siljishga yaxshi qarshilik
- Oksidlanishga yuqori qarshilik
- Ajoyib yopishqoqlik-harorat xususiyatlari
- Gidravlik itaruvchilarning (klapanlarni gidravlik sozlash) to'g'ri ishlashi
- Ajoyib yuvish va dispersiyalash xususiyatlari
- Yarim quruq moylash sharoitida yuqori mustahkamlik zaxirasi
- Zichlovchi materiallarga nisbatan neytral xatti-harakat
- Yaxshi ishga tushish xususiyatlari
- Silindrlar, porshenlar, klapanlar, shamlar va turbokompressorlarda yopishish, kokslashish va shlam hosil bo'lishining oldini olish
- Katalizatorlar bilan maksimal moslik
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Viskozite | 20W-50 |
20W-50
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| ACEA | A2, B2 |
A2, B2
|
||
| Talablarga mos keladi | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 871 | EN ISO 12185 |
871
g/cm³
EN ISO 12185
|
| Rang | Jigarrang | ingl |
Jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 18.1 | DIN 51562-1 |
18.1
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 151.5 | DIN 51562-1 |
151.5
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 133 | DIN ISO 2909 |
133
DIN ISO 2909
|
|
| Qotish harorati | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 248 | DIN EN ISO 2592 |
248
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.3 | ASTM D2896 |
7.3
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Ruxsatnomalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL STOU SAE 10W-40 universal mineral traktor moyi bo'lib, qishloq xo'jaligi texnikasi, ekskavatorlar va qurilish texnikasi uchun mo'ljallangan, yuqori sifatli, erituvchilardan tozalangan mineral asos moyi asosida ishlab chiqilgan. Bu professional yondashuvni talab qiladigan maxsus mahsulotdir. Suyuqlikni tanlash, uni almashtirish tartibi va davriyligi bo'yicha ishlab chiqaruvchi tavsiyalariga rioya qiling.
Talablarga muvofiqligi:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
5 L
Artikel:
1310111-005
Hajm:
10 L
Artikel:
1310111-010
Hajm:
20 L, ecobox
Artikel:
1310111-B20
Hajm:
60 L
Artikel:
1310111-060
Hajm:
208 L
Artikel:
1310111-208
Hajm:
1 000 L
Artikel:
1310111-700
RAVENOL STOU SAE 10W-40 universal mineral traktor moyi bo'lib, qishloq xo'jaligi texnikasi, ekskavatorlar va qurilish texnikasi uchun mo'ljallangan, yuqori sifatli, erituvchilardan tozalangan mineral asos moyi asosida ishlab chiqilgan. Bu professional yondashuvni talab qiladigan maxsus mahsulotdir. Suyuqlikni tanlash, uni almashtirish tartibi va davriyligi bo'yicha ishlab chiqaruvchi tavsiyalariga rioya qiling.
RAVENOL STOU SAE 10W-40 zamonaviy traktor texnikasining dvigatellari, transmissiyalari va gidravlik tizimlari uchun qo'llaniladi. Yuqori sifatli asos moyi va maxsus tanlangan qo'shimchalar paketi texnikaning yil bo'yi uzluksiz ishlashini kafolatlaydi.
Qo'llanilishi:
RAVENOL STOU SAE 10W-40 zamonaviy traktor texnikasining dvigatellari, transmissiyalari va gidravlik tizimlarida qo'llaniladi.
RAVENOL STOU SAE 10W-40 bitta moylash materialining barcha uzellarda universal qo'llanilishini ta'minlaydi: turboquvvatlagichli va turboquvvatlagichsiz benzin va dizel dvigatellari uchun motor moyi sifatida, transmissiya moyi sifatida (shu jumladan ho'l tormoz tizimlari) va gidravlik moy sifatida.
RAVENOL STOU SAE 10W-40 kompressor moyi sifatida ham qo'llanilishi mumkin.
Afzalliklari va xususiyatlari:
RAVENOL STOU SAE 10W-40 quyidagilarni ta'minlaydi:
- Yuqori detargent va dispersiyalovchi xususiyatlar
- Yeyilish, korroziya va ko'pik hosil bo'lishidan uzoq muddatli himoya
- Oksidlanishga yuqori chidamlilik
- Yuqori bosim ostida ajoyib xususiyatlar
- Yuqori va barqaror yopishqoqlik indeksi
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | 80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Viskozite | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| API | CG-4, GL-4, SF |
CG-4, GL-4, SF
|
||
| ACEA | E3 |
E3
|
||
| Talablarga mos keladi | Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
||
| Mos keladi | Atlas Copco Kompressor |
Atlas Copco Kompressor
|
||
| Zichlik 20°С da | g/cm³ | 864 | EN ISO 12185 |
864
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 14.7 | DIN 51562-1 |
14.7
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 101.1 | DIN 51562-1 |
101.1
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 151 | DIN ISO 2909 |
151
DIN ISO 2909
|
|
| Qotish harorati | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 12.4 | ASTM D2896 |
12.4
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Ruxsatnomalar | Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B |
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
|
RAVENOL Formel Standard SAE 10W-30 – mineral motor moyi, benzin va dizel yengil avtomobillari uchun, turbinali va turbinasiz motorlar hamda tijorat transporti uchun ishlab chiqarilgan.
Talablarga muvofiqligi:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
SAE: 10W-30
Analoglar OEM:
Ford 14A4D3, Ford 145C85, Ford 145C85, Ford 1010313, Ford 1103055, Ford 1103057, Ford 1359064, Ford 1359080, Ford 5019256, Ford 5019272, Ford 5019273, Ford 5022524, Ford 5022528, Ford 5022530, Ford A87SX19M544A, Ford A87SX19M544AAA, Ford A87SX19M544ABA, Ford A87SX19M544B, Ford A89SX19M544AA, Ford A89SX19M544EA, Ford A89SX19M544GA, Ford A95SX19M544ACA, Ford XS4J10W30A1A, Ford XS4J10W30A1L, Toyota 0888300115, Toyota 0888300116
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
4 L
Artikel:
1113110-004
Hajm:
10 L
Artikel:
1113110-010
Hajm:
20 L, ecobox
Artikel:
1113110-B20
Hajm:
60 L, bosilgan barrel
Artikel:
1113110-D60
Hajm:
208 L, bosilgan barrel
Artikel:
1113110-D28
RAVENOL Formel Standard SAE 10W-30 – mineral motor moyi, benzin va dizel yengil avtomobillari uchun, turbinali va turbinasiz motorlar hamda tijorat transporti uchun ishlab chiqarilgan.
Yilanish va eskirishni minimal darajaga tushiradi. Viskozlik xususiyatlari yil davomida foydalanishga imkon beradi. Agar avtomobil ishlab chiqaruvchisi boshqacha ko‘rsatma bermagan bo‘lsa, almashtirish oralig‘i uzaytirilgan.
Formel Standard SAE 10W-30 qo‘llanilishi quyidagilarni ta’minlaydi:
- Korroziyadan a’lo darajada himoya
- Kesish kuchlanishiga yaxshi chidamlilik
- Oksidlanishga yuqori chidamlilik
- A’lo viskoz-temperatura xususiyatlari
- Zo‘r yuvish va dispersiyalash xususiyatlari
- Yarim quruq moylash sharoitida yuqori mustahkamlik zaxirasi
- Muhrlash materiallariga nisbatan neytral ta’sir
- Yaxshi ishga tushirish xususiyatlari
- Silindrlar, porshenlar, klapanlar, ateşleme shamchalari va turbokompressorlar ustida yopishqoqlik, kokslanish va loy hosil bo‘lishining oldini olish
- Katalizatorlar bilan maksimal moslik
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Viskozite | 10W-30 |
10W-30
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| ACEA | A2, B2 |
A2, B2
|
||
| Talablarga mos keladi | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 859 | EN ISO 12185 |
859
g/cm³
EN ISO 12185
|
| Rang | Jigarrang | ingl |
Jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 12.3 | DIN 51562-1 |
12.3
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 84.3 | DIN 51562-1 |
84.3
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| Past haroratli viskozite (CCS) -35°С da | mPa*s | 6000 | ASTM D5293 |
6000
mPa*s
ASTM D5293
|
| Past haroratda nasoslanish viskozitesi (MRV) -40°C da | mPa*s | 21.400 | ASTM D4684 |
21.400
mPa*s
ASTM D4684
|
| Qotish harorati | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.2 | ASTM D2896 |
7.2
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Ruxsatnomalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
RAVENOL Formel Super SAE 15W-40 – mineral motor moyi, benzin va dizel yengil avtomobillari uchun, turbinali va turbinasiz motorlar hamda tijorat transporti uchun ishlab chiqarilgan.
Talablarga muvofiqligi:
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
- Mavjud qadoqlash
- Mahsulot parametrlari
Hajm:
4 L
Artikel:
1113115-004
Hajm:
60 L, bosilgan barrel
Artikel:
1113115-D60
Hajm:
208 L, bosilgan barrel
Artikel:
1113115-D28
Hajm:
1 000 L
Artikel:
1113115-700
RAVENOL Formel Super SAE 15W-40 – mineral motor moyi, benzin va dizel yengil avtomobillari uchun, turbinali va turbinasiz motorlar hamda tijorat transporti uchun ishlab chiqarilgan.
Yilanish va eskirishni minimal darajaga tushiradi. Viskozlik xususiyatlari yil davomida foydalanishga imkon beradi. Agar avtomobil ishlab chiqaruvchisi boshqacha ko‘rsatma bermagan bo‘lsa, almashtirish oralig‘i uzaytirilgan.
Formel Super SAE 15W-40 qo‘llanilishi quyidagilarni ta’minlaydi:
- Korroziyadan a’lo darajada himoya
- Kesish kuchlanishiga yaxshi chidamlilik
- Oksidlanishga yuqori chidamlilik
- A’lo viskoz-temperatura xususiyatlari
- Gidravlik tolqatorlarning to‘g‘ri ishlashi (gidravlik klapan sozlanishi)
- Zo‘r yuvish va dispersiyalash xususiyatlari
- Yarim quruq moylash sharoitida yuqori mustahkamlik zaxirasi
- Muhrlash materiallariga nisbatan neytral ta’sir
- Yaxshi ishga tushirish xususiyatlari
- Silindrlar, porshenlar, klapanlar, ateşleme shamchalari va turbokompressorlar ustida yopishqoqlik, kokslanish va loy hosil bo‘lishining oldini olish
- Katalizatorlar bilan maksimal moslik
| Parametr | O‘lchov birligi | Qiymat | Sinov | |
|---|---|---|---|---|
| Tavsiyalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Viskozite | 15W-40 |
15W-40
|
||
| Turi | Mineral |
Mineral
|
||
| API | CD, SF |
CD, SF
|
||
| ACEA | A2, B2 |
A2, B2
|
||
| Talablarga mos keladi | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
||
| Zichlik 20°С da | g/cm³ | 864 | EN ISO 12185 |
864
g/cm³
EN ISO 12185
|
| Rang | Sariq-jigarrang | ingl |
Sariq-jigarrang
ingl
|
|
| Viskozite 100°С da | mm²/s | 14.2 | DIN 51562-1 |
14.2
mm²/s
DIN 51562-1
|
| Viskozite 40°С da | mm²/s | 105.4 | DIN 51562-1 |
105.4
mm²/s
DIN 51562-1
|
| Viskozite indeksi VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Qotish harorati | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Yong‘in chiqish harorati | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Ishqoriy son | mgKOH/g | 7.1 | ASTM D2896 |
7.1
mgKOH/g
ASTM D2896
|
| Sulfatli kul miqdori | %wt. | 0.9 | DIN 51575 |
0.9
%wt.
DIN 51575
|
| Ruxsatnomalar | CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B |
CCMC G4, MB 227.1, MIL-L-2104 D, MIL-L-46152 B
|
